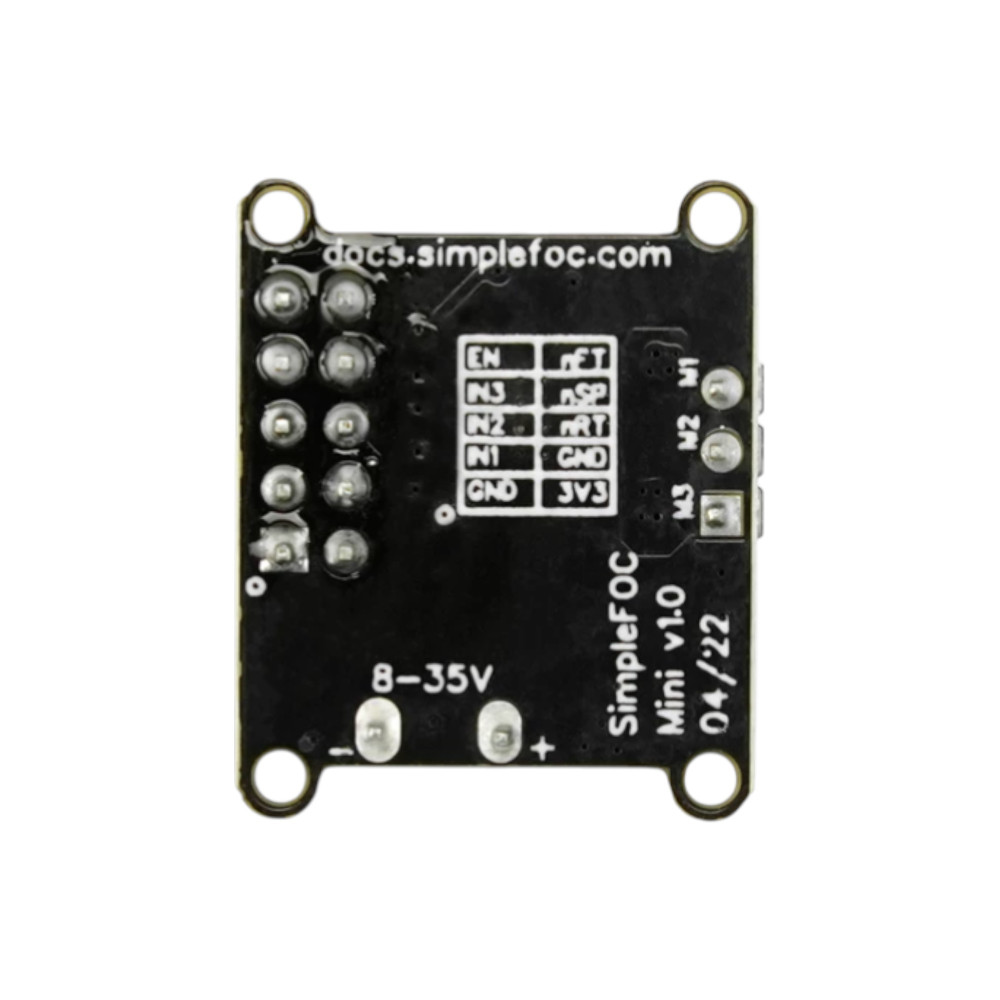

FOC Brushless DC Motor Driver Board 8-30V 2.5A

The SimpleFOCmini is a compact driver for brushless DC motors (BLDC) based on the Field-Oriented Control (FOC) method. Unlike conventional brushless controllers (ESCs) that rely on block commutation, the board generates sinusoidal control signals for particularly smooth and efficient motor operation. With an input voltage of 8 to 30 V DC and a maximum output current of 2.5 A per phase, the driver is suitable for a variety of BLDC motors. Full compatibility with the SimpleFOC open-source library enables a quick start in field-oriented motor control.

Recommended Accessories:

• 12 V 1800 RPM 300 g·cm 2208 Brushless DC Motor
• 24 V 1100 RPM 3.5 kg·cm 4015 Brushless DC Motor
• 12 V 2600 RPM 300 g·cm 2804 Brushless DC Motor

Features:

• FOC algorithm enables precise control of position, speed, and torque over the entire speed range
• Sinusoidal drive ensures particularly quiet and low-vibration motor operation compared to conventional ESCs
• Reverse polarity protection on the supply voltage protects the electronics from damage due to incorrect polarity

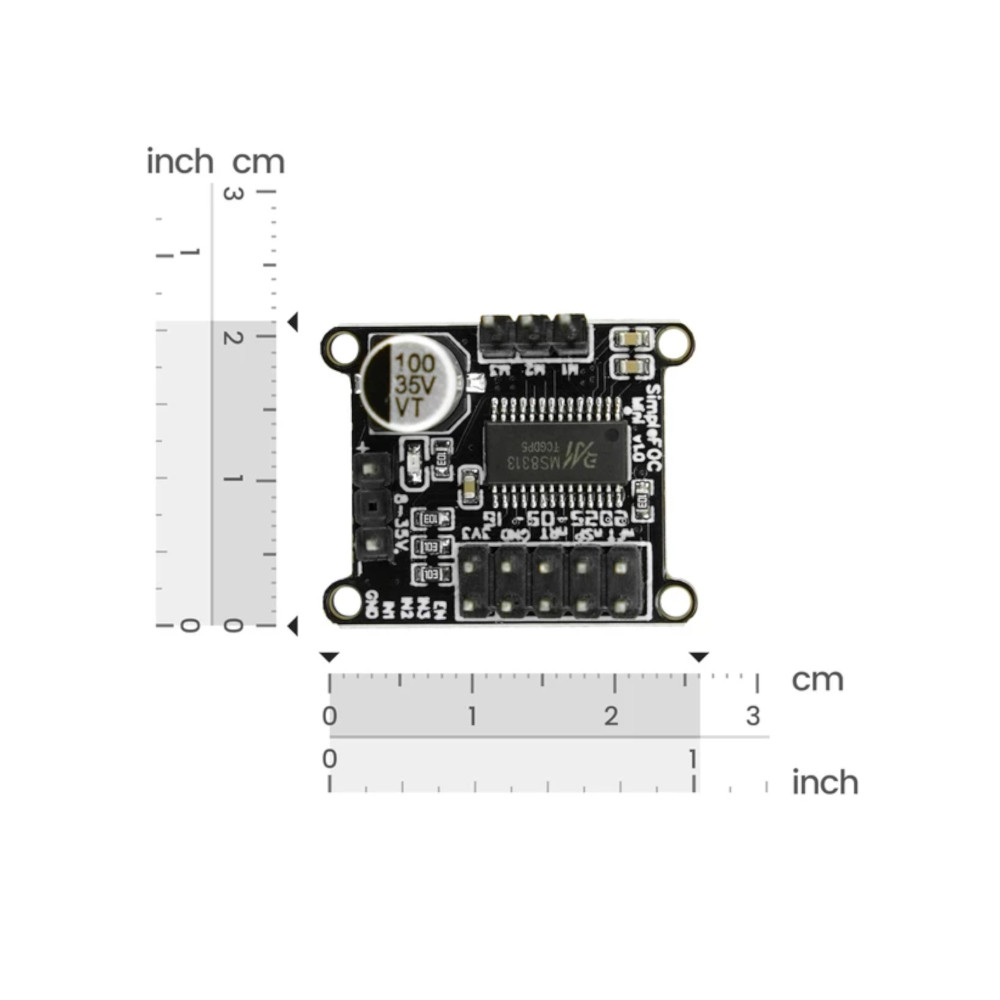

• Compact dimensions of only 26 × 21.5 mm allow integration into space-critical projects and enclosures
• Logic compatibility with 3.3 V and 5 V enables direct connection to common microcontroller platforms
• SimpleFOC open-source library offers extensive examples and algorithms for a quick project start

Application Examples:

• Camera gimbals and stabilization systems with smooth, precise motor movement
• Robotic joints and actuators with closed-loop position control
• Haptic input devices and force feedback systems with torque control
• Fan and pump controls with high efficiency and low noise levels
• Learning projects and prototypes for field-oriented motor control

Documentation:

• DFRobot Wiki – SimpleFOC Mini BLDC Driver Board

Technical Specifications:

• Manufacturer: DFRobot
• Manufacturer SKU: DRI0058
• Control Algorithm: Field-Oriented Control (FOC), SPWM, SVPWM
• Input Voltage: 8–30 V DC
• Maximum Output Current: 2.5 A per phase
• Logic Level: 3.3 V / 5 V compatible
• Onboard LDO: 3.3 V, max. 10 mA
• Maximum PWM Frequency: 200 kHz
• Protection Features: Reverse polarity protection
• Compatibility: Arduino, ESP32, Raspberry Pi (SimpleFOC library)
• Motor Connection: UVW three phases
• Product Dimensions: 26 × 21.5 mm
• Package Dimensions: 80 × 50 × 13 mm
• Gross Weight: 10 g

Package Contents:

• 1× FOC Brushless DC Motor Driver Board 8–30 V 2.5 A
