The HT-PLA Yellow Filament by R3D is a high-temperature-resistant PLA filament with a diameter of 1.75 mm and a net weight of 1 kg. It features an increased Vicat softening temperature of 155.2 °C, making it significantly more heat-resistant than standard PLA. This material is particularly suitable for printed parts that need to withstand higher temperatures. With a tensile strength of 40 MPa and a flexural modulus of 4106 MPa, the filament offers excellent mechanical properties for functional components. The melting temperature is 165 °C, and the elongation at break is 11.8 %. The filament is compatible with nozzle sizes from 0.2 to 0.8 mm and supports use in AMS systems. The spool is sealed and packed with silica gel to prevent moisture absorption. The manufacturer recommends storing it in a cool, dry environment at 15 to 25 °C without UV exposure for optimal results. The filament diameter tolerance is ±0.02 mm, ensuring uniform extrusion and consistent printing results.

Recommended Accessories:

• 1 Liter Isopropyl Alcohol / Isopropanol 99.8%
• 3DLac Adhesion Spray 400ml
• Brass Wire Brush for Hotend / Nozzle Cleaning
• 3D Printer Accessory Kit

Properties:

• High-temperature resistance with a Vicat softening temperature of 155.2 °C offers significantly better heat resistance than standard PLA.
• Tight diameter tolerance of ±0.02 mm ensures uniform and reliable extrusion.
• AMS compatibility allows use in automatic material change systems.
• High flexural modulus of 4106 MPa ensures stiff and dimensionally stable printed parts.
• Compatibility with nozzle sizes from 0.2 to 0.8 mm allows flexible printing settings.
• Moisture-protected delivery with silica gel ensures material quality from the factory.

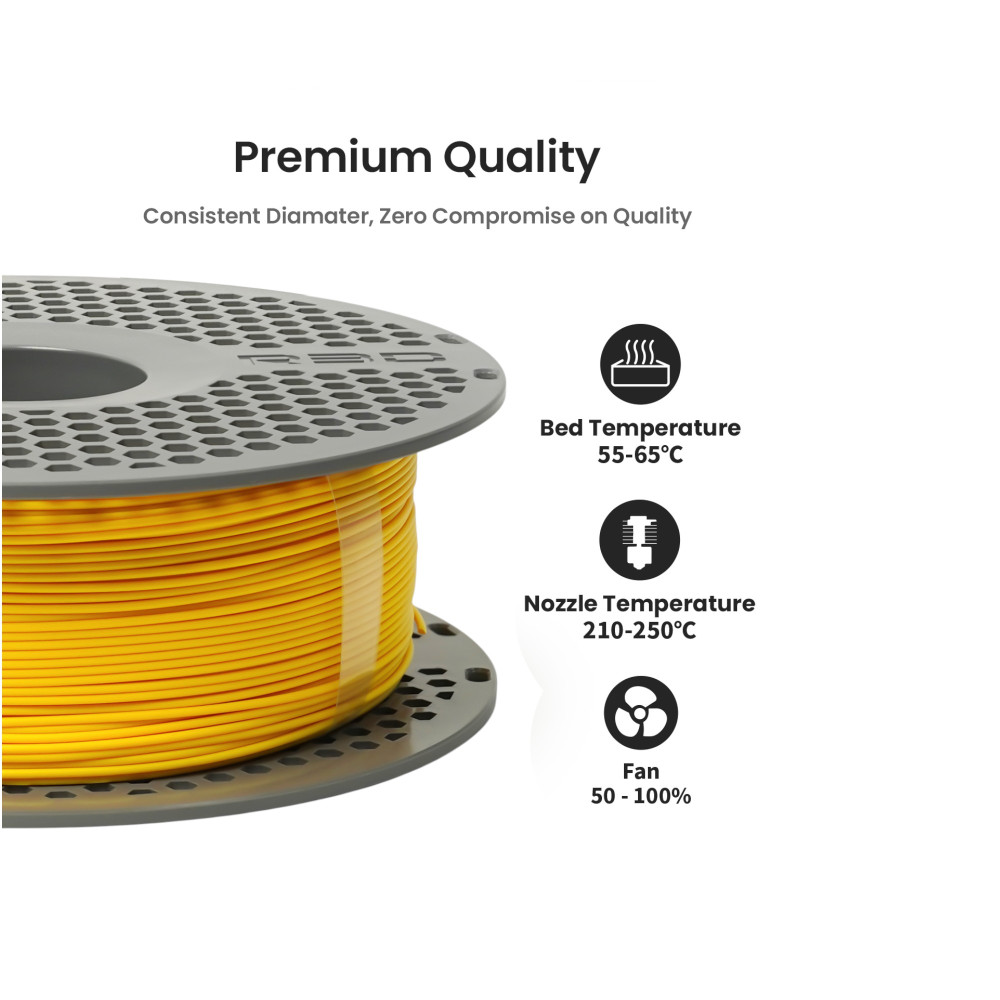

Recommended Printing Parameters:

• Nozzle temperature: 210–250 °C
• Heated bed temperature: 55–65 °C (adhesion promoter recommended)
• Printing speed: <300 mm/s
• Part cooling: 50–100 %
• Build chamber temperature: 25–45 °C
• Drying: 50–60 °C, 4–6 h

Application Examples:

• Functional prototypes exposed to elevated temperatures
• Housings and covers near heat sources
• Mechanical components with high demands for stiffness and dimensional stability
• Multi-color projects with automatic material change via AMS
• Decorative objects in bright yellow color

Documentation:

• Data Sheet
• TigerTag RFID Connect App
• Manufacturer Website

Technical Data:

• Manufacturer: R3D
• Manufacturer SKU: R3DA1R104TMS
• Material: PLA High Temp (HT-PLA)
• Diameter: 1.75 mm
• Tolerance: ±0.02 mm
• Color: Yellow
• Net weight: 1 kg
• Density: 1.22 g/cm³
• Melting temperature: 165 °C
• Vicat softening temperature: 155.2 °C
• Heat deflection temperature: 60.5 °C (ISO 75, 0.45 MPa)
• Tensile strength: 40 MPa
• Elongation at break: 11.8 %
• Flexural modulus: 4106 MPa
• Flexural strength: 86 MPa
• Impact strength: 4.2 kJ/m²
• Impact strength Z-direction: 2.7 kJ/m²
• Moisture absorption: 0.4 % (23 °C, 50 % RH)
• Nozzle compatibility: 0.2–0.8 mm
• AMS compatible: Yes
• Packaging dimensions: 210 × 210 × 70 mm
• Gross weight: 1420 g

Contents:

• 1× HT-PLA Yellow Filament 1.75 mm 1 kg R3D
