RGB LED status indicator for Bambu printer

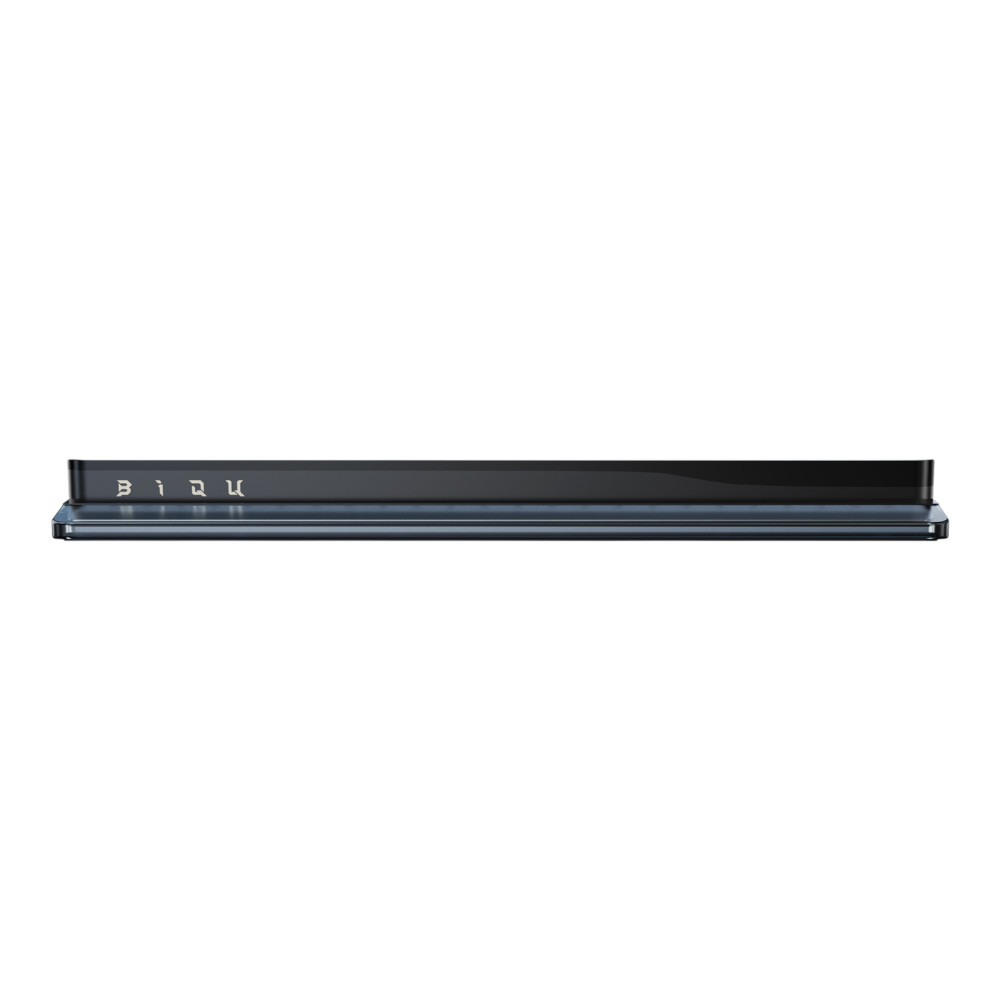

The BIQU Panda Status is an RGB LED status display with 25 addressable LEDs for visualizing the printer status of Bambu Lab 3D printers. The system is based on an ESP32-S3 microcontroller and communicates wirelessly via 2.4 GHz WiFi with the printer. The status data is transmitted over the network, allowing the system to be used model-independently. The display can be mounted directly on the printer or operated independently as a remote status display. For compatible models, the strip is mounted under the print bed. For printers without a designated mounting point, external operation is possible. Power is supplied via USB-C. Initial setup is done through an integrated web interface, accessed via its own temporary WLAN. After configuration, the strip displays the printer status color-coded. Additionally, various lighting modes are available. The magnetic mounting allows for tool-free installation. A transparent diffuser ensures even light distribution over the entire length of the LED strip. The system is designed for continuous operation and is also suitable for use in print farms.

Features:

ESP32-S3 microcontroller enables wireless WiFi communication.
Twenty-five addressable RGB LEDs display the printer status color-coded.
Network-based connection allows model-independent use with Bambu Lab printers.
Web interface enables easy setup and customization of lighting modes.
H2D-Style mode visualizes printer status similar to the original lighting.
Magnetic mounting allows tool-free installation under the print bed.
Independent operation as a remote status display is possible.
Transparent diffuser ensures even light distribution.

Applications:

Visual printer status display directly on the printer for quick overview.
Remote monitoring of printer status from the workplace without an app.
Retrofit of an H2D-like status display for P1P and P1S models.
Status overview in print farms with multiple devices at a glance.
Decorative status lighting for demonstrations or exhibitions.

Technical Specifications:

Manufacturer: BIQU
Manufacturer SKU: 1060000826
MCU: ESP32-S3
Number of LEDs: 25
LED Type: Addressable RGB LEDs
WiFi: 2.4 GHz IEEE 802.11 b/g/n
Power Supply: USB-C, 5 V
Current Consumption: 0.6 A
Cable Length: 1 m
Mounting: Magnetic with adhesive tape
Display Modes: H2D Style Lighting, Instant Status Updates, Rhythm Light Sync, Custom Lighting
Configuration: Web UI via WiFi Access Point
Data Transmission: Network-based via WiFi
Compatibility Mounting: Bambu Lab A1, P1P, P1S, X1C, X1E
Compatibility Remote: All Bambu Lab printers with WiFi
Operating Temperature: Controller <90 °C, LED strip <140 °C
Dimensions: 290 × 90 × 40 mm
Weight: 206 g
