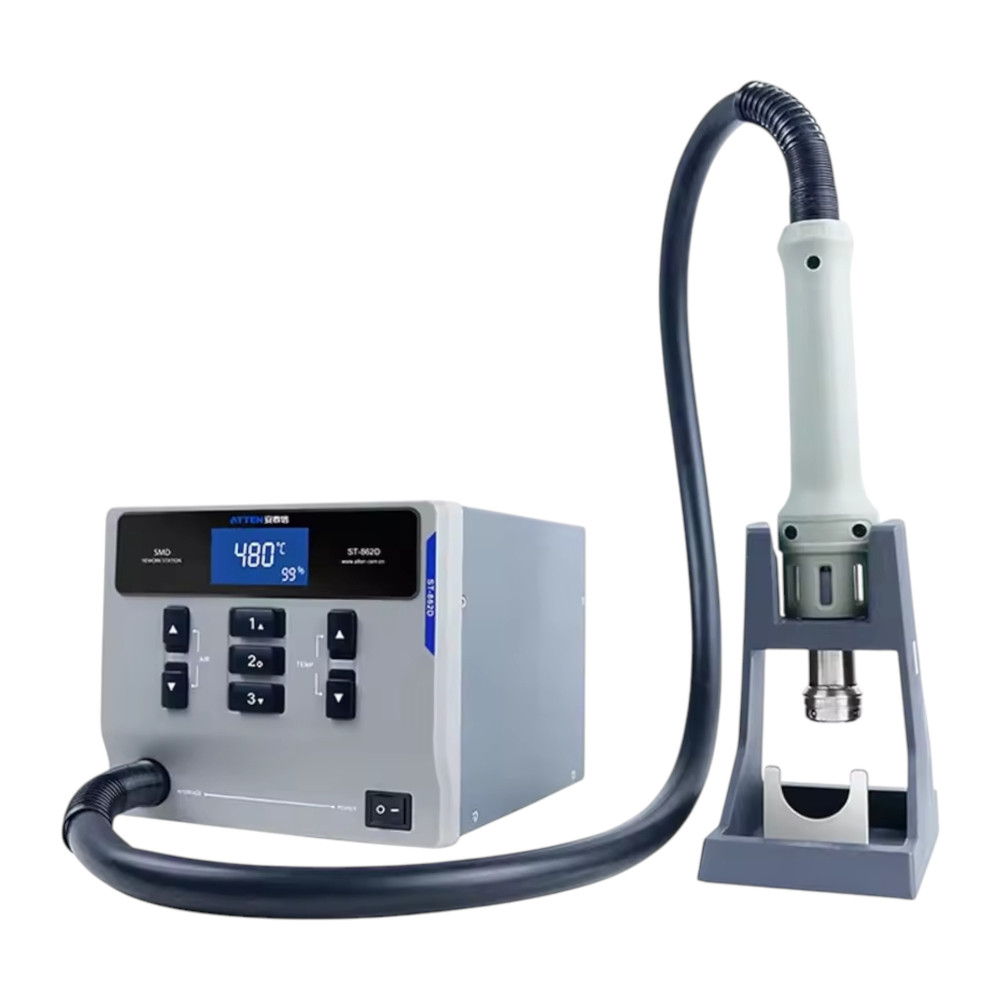

Atten Hot Air Station ST-862D

The Atten ST-862D is considered one of the best hot-air stations on the market and impresses with an outstanding balance of price, performance, and reliability. With 1000 W heating power, the station achieves extremely short heat-up times and offers a precise temperature range of 100 to 480 °C. The brushless fan ensures consistent, adjustable airflow from 1 to 120 l/min and a long lifespan. Particularly noteworthy is the ease of use: temperature and airflow can be set precisely via the LED display, and three memory slots allow for quick recall of work profiles. The station features an automatic standby mode as soon as the hot air handle is placed in the holder, as well as an on/off switch directly on the handle for additional control. The delivery includes a total of 5 nozzles: three nozzles without air turbulence for a consistent airflow and two special nozzles with air turbulence, allowing for targeted heat distribution for specific applications. This makes the ST-862D optimally equipped for a wide variety of soldering and desoldering tasks.

Recommended Accessories:

• Atten Vacuum Pickup Tool AT-B778
• YiHUA Antistatic Tweezer Set 5 Pieces
• Soldering Tools PCB Repair Set 6-Piece
• Atten Flux AT-H20 10g RoHS

Features:

• The ST-862D offers the best value for money on the market.
• The operation is simple and intuitive via LED display and memory slots.
• The brushless fan delivers long-lasting operation and consistent airflow.
• The airflow is adjustable from 1 to 120 l/min with 1000 W power.
• The hot-air handle has its own on/off switch.
• An automatic standby mode is activated when placed in the holder.
• The station offers precise temperature control from 100 to 480 °C.
• Includes 5 nozzles (3 without, 2 with air turbulence) for flexible applications.

Application Examples:

• Desoldering and soldering of SMD components such as QFP, SOP, QFN, and BGA.
• Repairs of smartphones, laptops, and consumer electronics.
• Use in professional electronics workshops for development and service.
• Usage in educational and training labs for teaching SMD techniques.

Documentation:

• Instruction Manual German

Technical Specifications:

• Manufacturer: Atten
• Manufacturer SKU: ST-862D
• Power: 1000 W
• Temperature range: 100 – 480 °C
• Airflow: 1 – 120 l/min, brushless fan
• Display: LED display, 3 memory channels
• Functions: Automatic standby, on/off switch on the handle
• Voltage: 220 V AC, 50/60 Hz

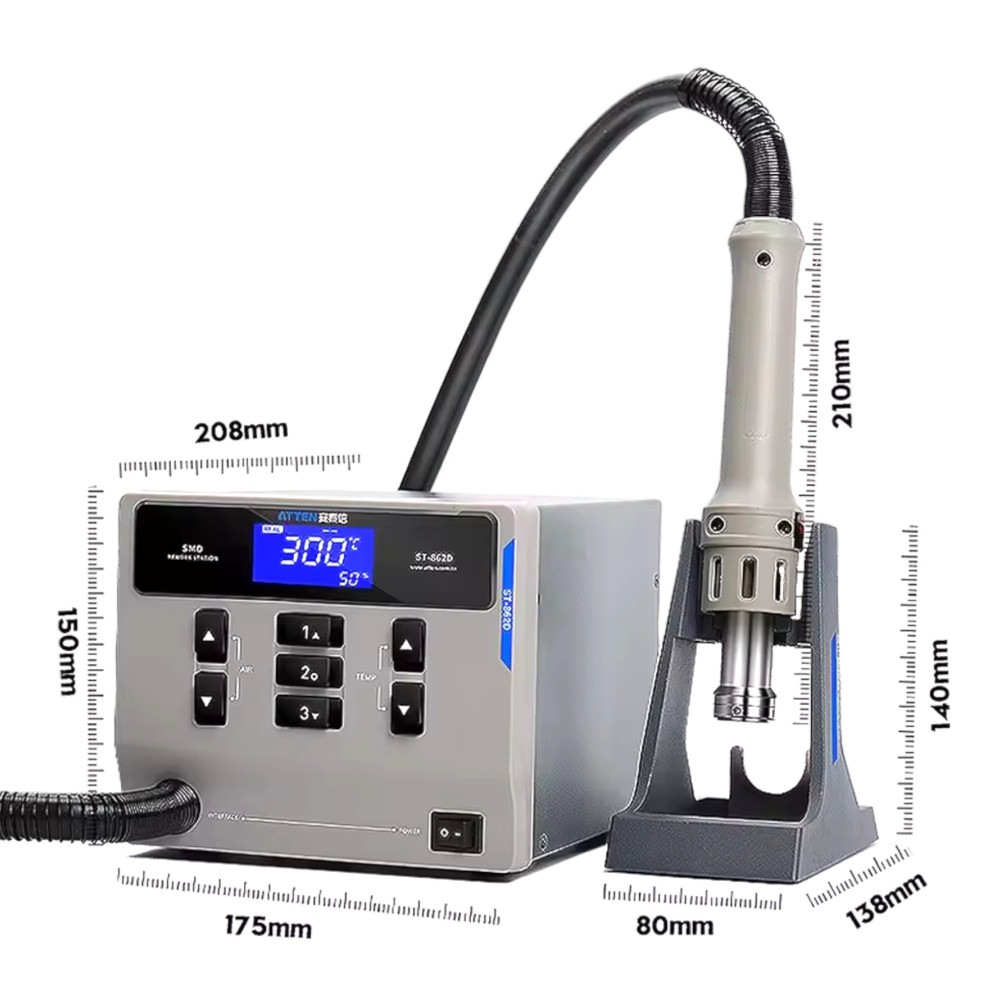

• Dimensions: 208 × 175 × 150 mm
• Weight: 4333 g

Scope of Delivery:

• 1x Atten Hot Air Station ST-862D
• 1x Hot Air Handle with Holder

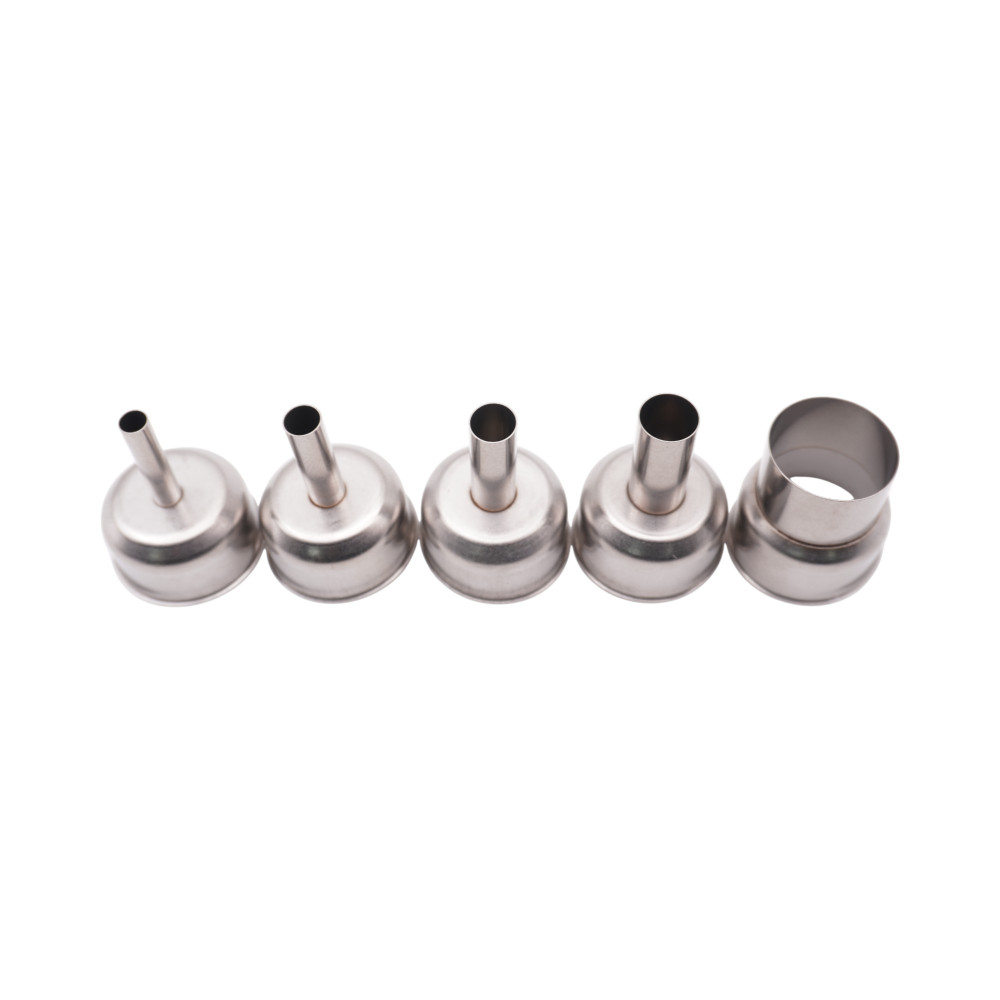

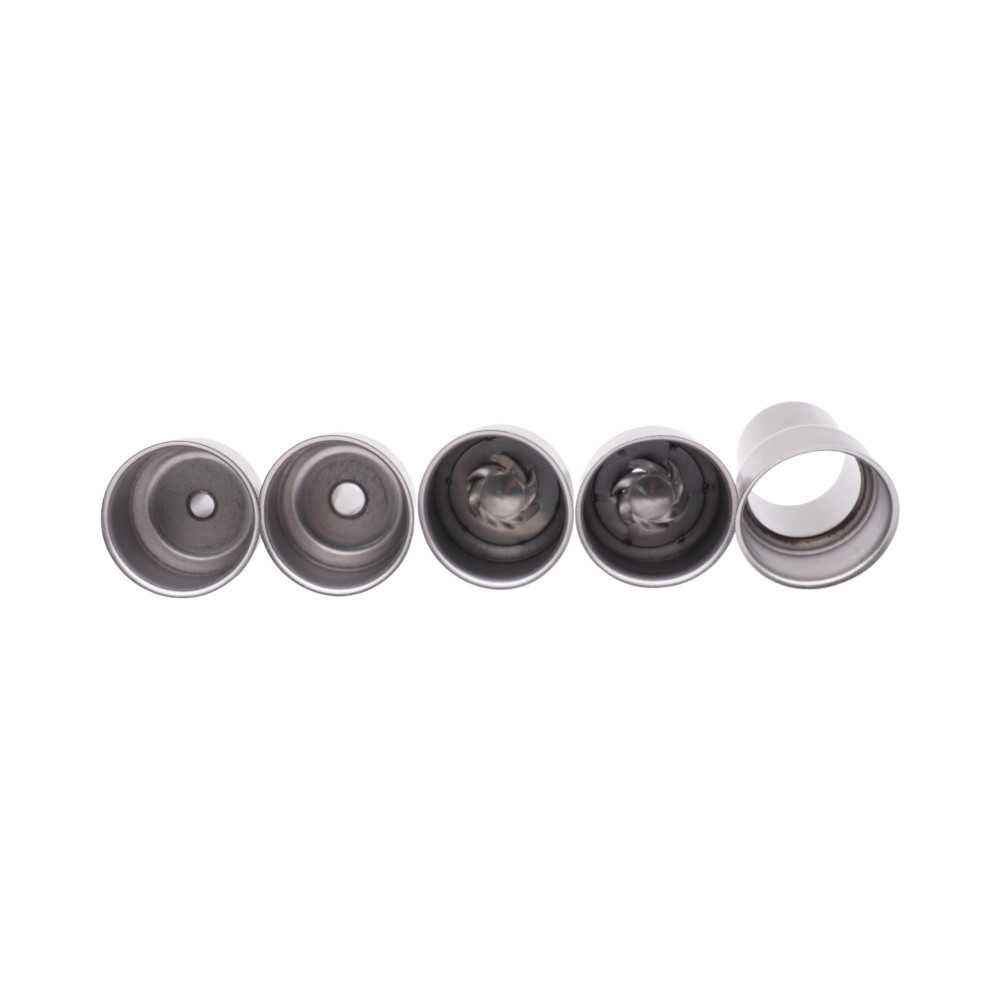

• 5x Hot Air Nozzles (3 without air turbulence, 2 with air turbulence)
