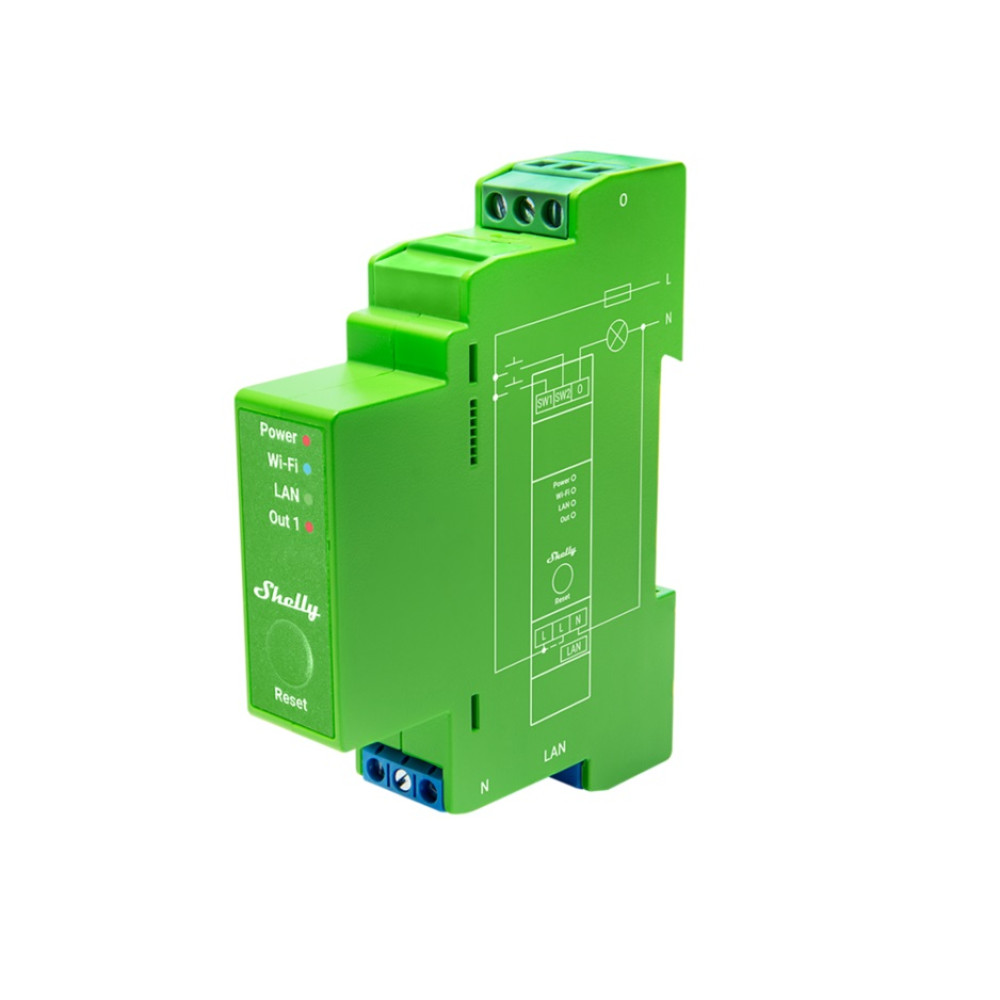

Shelly Pro Dimmer 1PM WiFi / LAN

The Shelly Pro Dimmer 1PM is an innovative, professional 1-channel DIN rail smart dimmer, allowing precise control and monitoring of lighting. With its ability to control and dim a variety of halogen lamps, dimmable LEDs and ferromagnetic transformers between 110-240V, it offers a flexible solution for modern lighting requirements. The dimmer is characterized by its LAN, Wi-Fi and Bluetooth connectivity, allowing reliable and versatile control without requiring an additional hub. The automatic dimming calibration and adjustable minimum/maximum brightness levels ensure optimal lighting adaptation to any environment. Moreover, the dimmer supports smart schedules and scenes, allowing lighting to be adjusted according to the daily schedule or special occasions. The integrated power measurement helps to monitor and optimize energy consumption efficiently.

Features:

• Professional 1-channel DIN rail smart dimmer with power monitoring.
• LAN, Wi-Fi, and Bluetooth connection for flexible control options.
• Automatic dimming calibration for even brightness control.
• Adjustable min/max brightness and button fade rate for individual lighting adjustments.
• Supports smart schedules and scenes for lighting automation.
• No hub required; control through the Shelly Smart Control App and common automation platforms.
• Wi-Fi repeater & BLE gateway functions for extended connectivity.

Application examples:

• Optimization of lighting in residential buildings, offices and commercial premises.
• Adjusting brightness to different times of day or activities.
• Energy-efficient control and monitoring of energy consumption.
• Integration into existing smart home systems for central control.

Documentation and Downloads:

• Shelly Knowledge Base
• Shelly Forum German
• Google Play Store
• Apple® App Store

Technical specifications:

• Manufacturer: Allterco
• Type: Pro Dimmer 1PM
• Physical characteristics:
  • Maximum torque of the screw terminals: 0.4 Nm / 3.54 lbin
  • Conductor cross section:

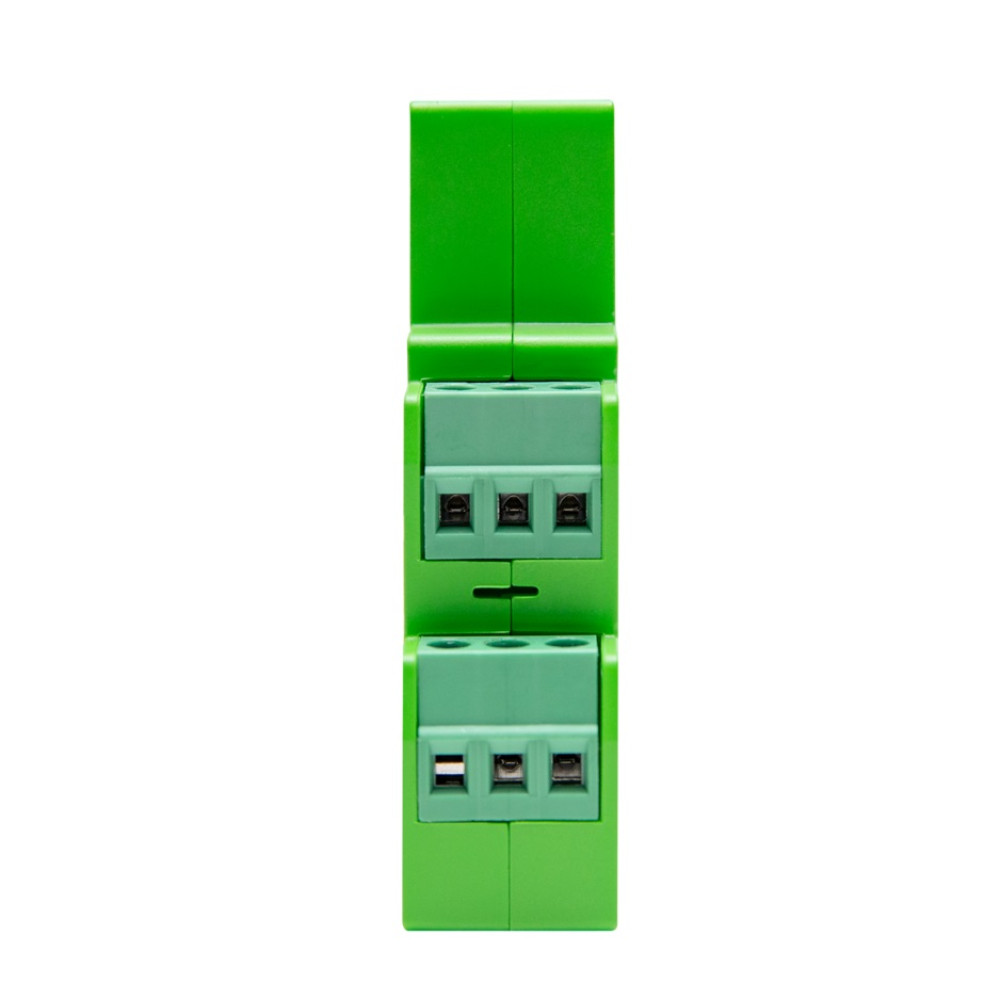

  • 0.5 to 2.5 mm² / 20 to 14 AWG (green connections)

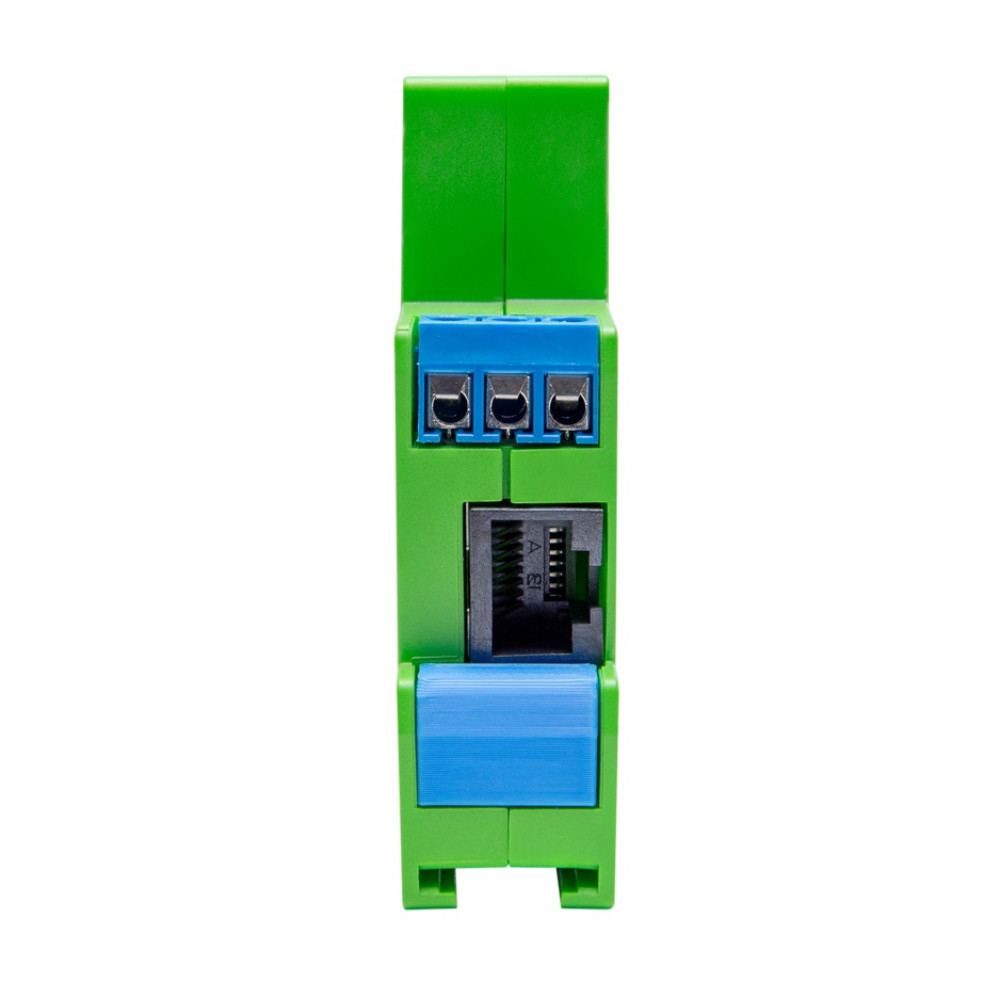

  • 0.5 to 1.5 mm² / 20 to 16 AWG (blue connection) (solid, twisted and with ferrules)
  • Conductor stripping length:
  • 6 to 7 mm / 0.24 to 0.28 in (green connections)
  • 5 to 6 mm / 0.20 to 0.24 in (blue connection)
  • Mounting: DIN rail
  • Housing material: plastic
  • Housing color: lime
• Environmental conditions:
  • Ambient temperature: -20 °C to 40 °C / -5 °F to 105 °F
  • Humidity: 30% to 70% RH
  • Maximum altitude above sea level: 2000 m / 6562 ft
• Electrical properties:
  • Power supply: 110 - 240 V~ 50/60 Hz
  • Power consumption: < 2 W
  • External protection: 10 A, tripping characteristic B or C, 6 kA cut-off capacity, energy limit class 3
  • Dim type: trailing edge
  • Output circuit ratings
  • Max. output power: 200 W
• Sensors, meters:
  • Voltmeter (AC): Yes
  • Ammeter (AC): Yes
  • Power and energy meter: Yes
  • Internal temperature sensor: Yes
• Wi-Fi:
  • Protocol: 802.11 b/g/n
  • RF band: 2401 - 2483 МHz
  • Max. RF power: < 20 dBm
  • Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (depending on local conditions)
• Bluetooth
  • Protocol: 4.2
  • RF band: 2400 - 2483.5 MHz
  • Max. RF power: < 4 dBm
  • Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (depending on local conditions)
• Microcontroller unit:
  • CPU: ESP32-D0WDQ6
  • Flash: 8 MB
• Firmware capabilities
  • Schedules: 20
  • Webhooks (URL actions): 20 with 5 URLs per hook
  • Scripting: Yes
  • MQTT: Yes
• Dimension: 94 x 19 x 69mm
• Weight: 90g

Package contents:

• 1x Shelly Pro Dimmer 1PM WiFi / LAN
