RP2350 Raspberry 2MB Pi Core2350B1 Kit

The Waveshare Core2350B1 kit is a compact high-performance microcontroller board based on the Raspberry Pi RP2350B. The innovative chip offers a unique dual-core and dual-architecture design with either two ARM Cortex-M33 cores or two Hazard3 RISC-V cores at up to 150 MHz clock speed. With 2 MB PSRAM, this variant offers the largest available memory in the Core2350B series for particularly memory-intensive applications. The kit includes a USB port adapter with a Type-C connector and an FFC connection cable for instant startup.

Features:

• Dual-architecture allows choice between ARM Cortex-M33 and RISC-V Hazard3 cores
• 2 MB PSRAM provides maximum memory for demanding applications like image processing
• Compact size of only 25.4 × 25.4 mm is ideal for space-critical projects
• 48 GPIO pins offer extensive connectivity for peripherals and sensors
• USB-C adapter included enables immediate operation without additional accessories
• 12 programmable PIO state machines allow the implementation of custom protocols

Application examples:

• Image processing and graphics buffering for display applications
• Machine learning inference with large models at microcontroller level
• Audio processing with extensive sample buffers
• Data logger with high storage capacity for long-term recordings
• Embedded web server with dynamic content

Documentation:

• Waveshare Wiki – Core2350B

Technical Specifications:

• Manufacturer: Waveshare
• Manufacturer SKU: 31819
• Microcontroller: Raspberry Pi RP2350B
• CPU cores: Dual-Core ARM Cortex-M33 or Dual-Core Hazard3 RISC-V
• Clock frequency: Up to 150 MHz
• PSRAM: 2 MB
• SRAM: 520 KB
• Flash memory: 16 MB

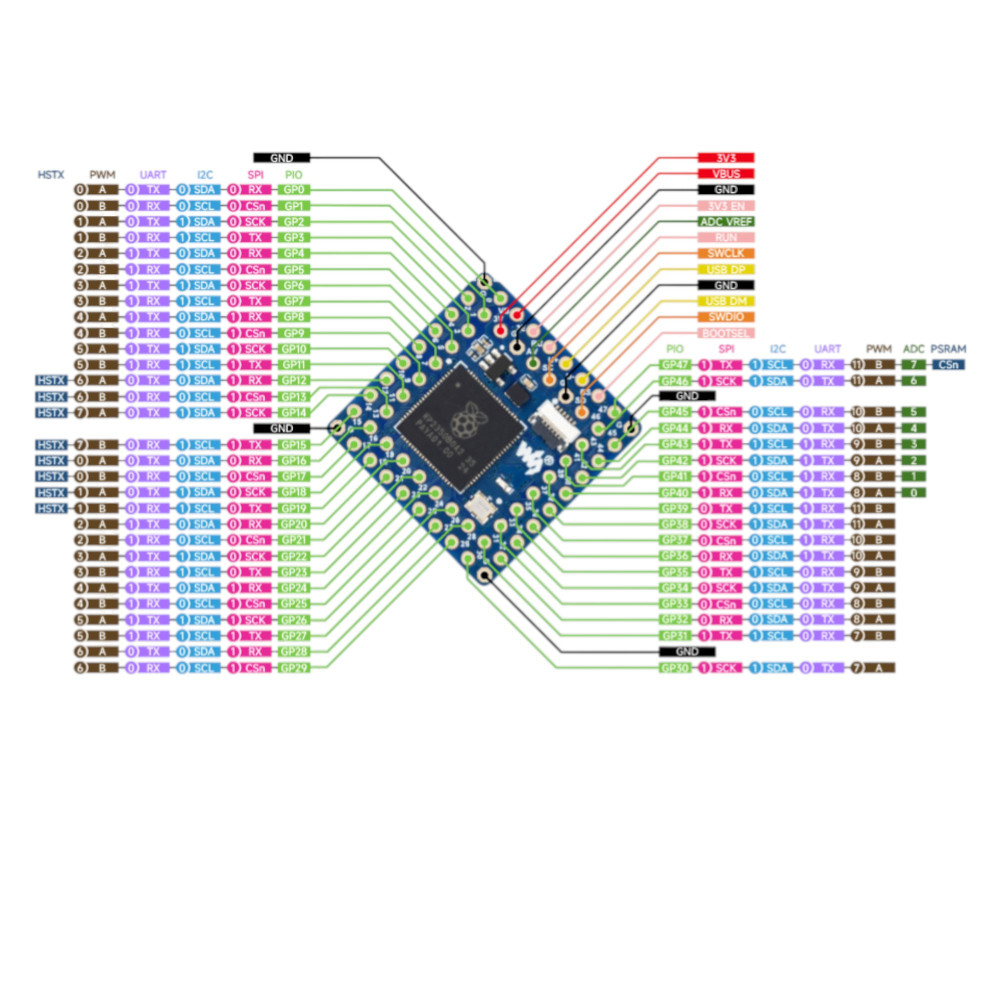

• GPIO pins: 48 multifunctional
• Interfaces: 2× I2C, 2× UART, 8× 12-bit ADC, 24× PWM
• PIO: 12 programmable state machines
• USB: 1.1 Host and Device
• Connection: FPC 6-pin to USB Type-C (via adapter)
• Pin pitch: 2.54 mm
• Operating voltage: 3.3 V (5 V via USB)
• Programming: Drag-and-Drop via USB, SWD
• Software support: C/C++, MicroPython, Arduino IDE
• Product dimensions: 25.4 × 25.4 mm
• Package dimensions: 110 × 70 × 5 mm
• Gross weight: 5 g

Package Contents:

• 1× RP2350 Raspberry 2MB Pi Core2350B1 kit

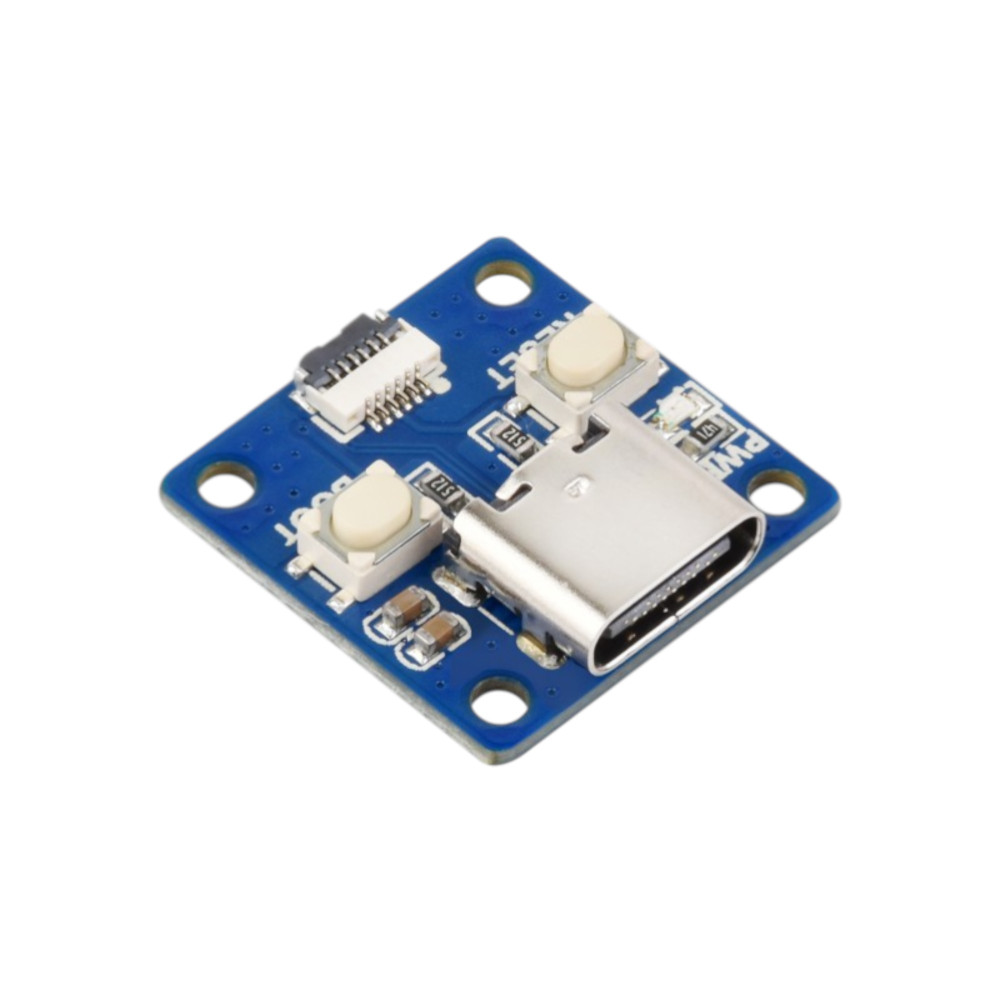

• 1× RP-Tiny-Adapter-B (USB Type-C)
• 1× FFC 6-pin cable
