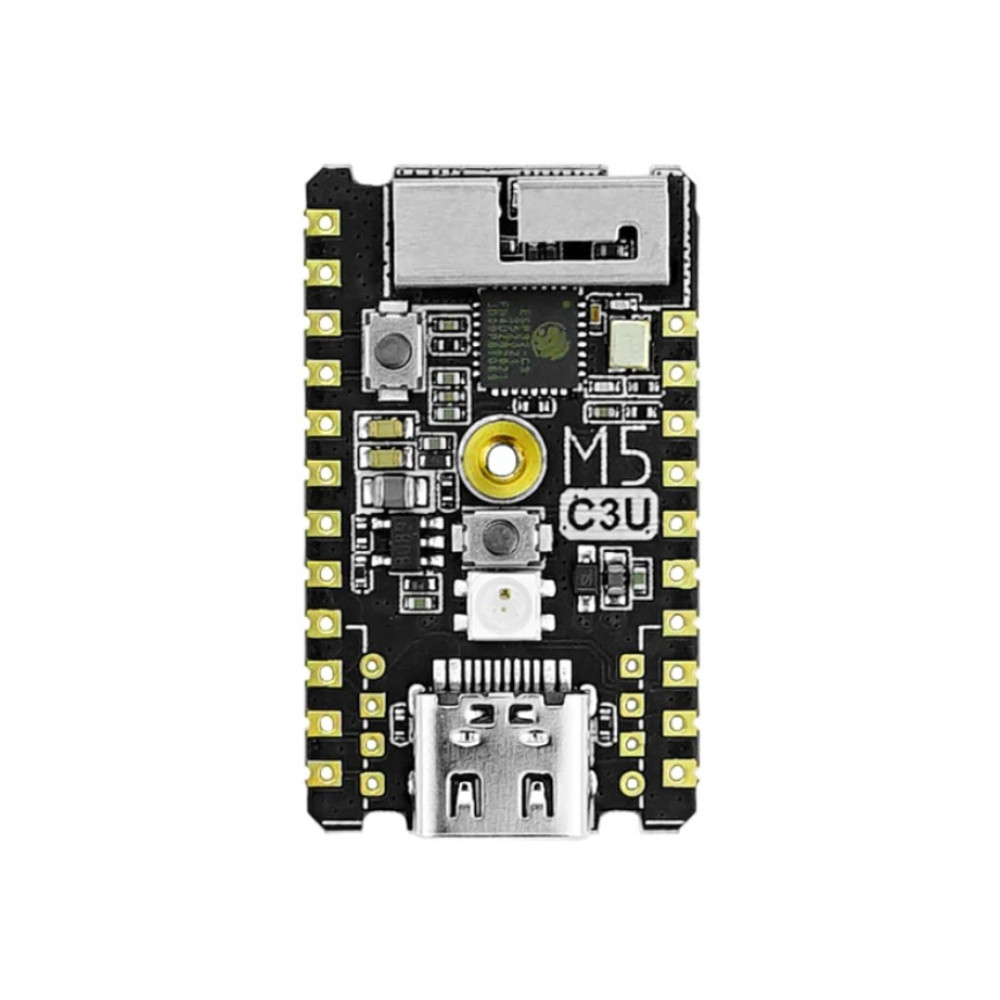

M5Stamp C3U with pin headers
The Stamp C3U from M5Stack is based on a 32-bit RISC-V microcontroller with a frequency of 160MHz. With 400KB RAM and 4MB onboard flash memory, it can handle many different applications. The Stamp C3U supports WiFi and Bluetooth 5.0 as well as the Bluetooth mesh function. The STAMP C3U supports the UIFlow graphical programming platform, is script-free, supports Cloud Push and is fully compatible with Arduino, MicroPython, ESP32-IDF, and other mainstream development platforms for quickly creating various applications. The difference between the C3U and the C3 Mate is that the C3U does not have a built-in USB download chip. The C3U uses the USB-serial interface from the ESP32-C3 for downloading.
Features:

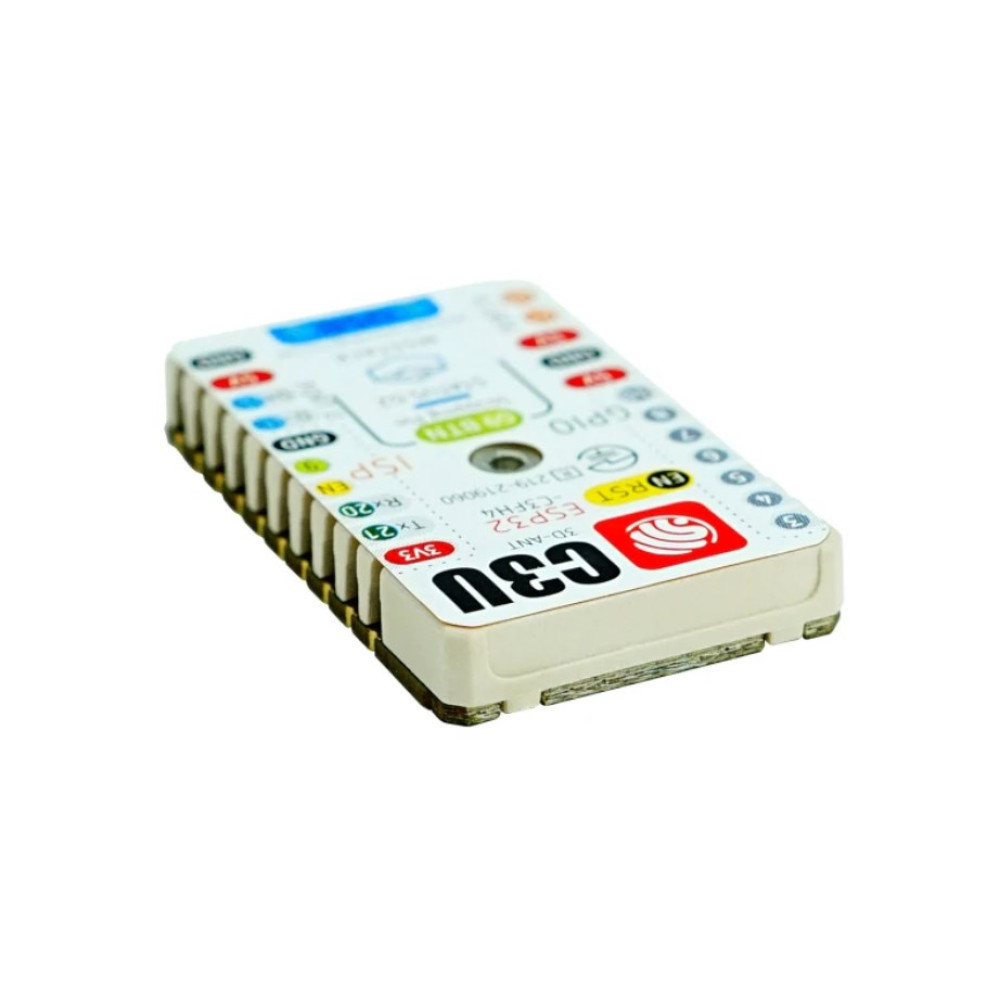

- High-temperature-resistant plastic housing up to 230°C
- Integrated programmable RGB LEDs and buttons
- Based on ESPRESSIF ESP32-C3 RISC-V MCU
- Supports UIFlow graphical programming, Arduino and ESP32-IDF
- Multi-IO Pinout 13x GIPO

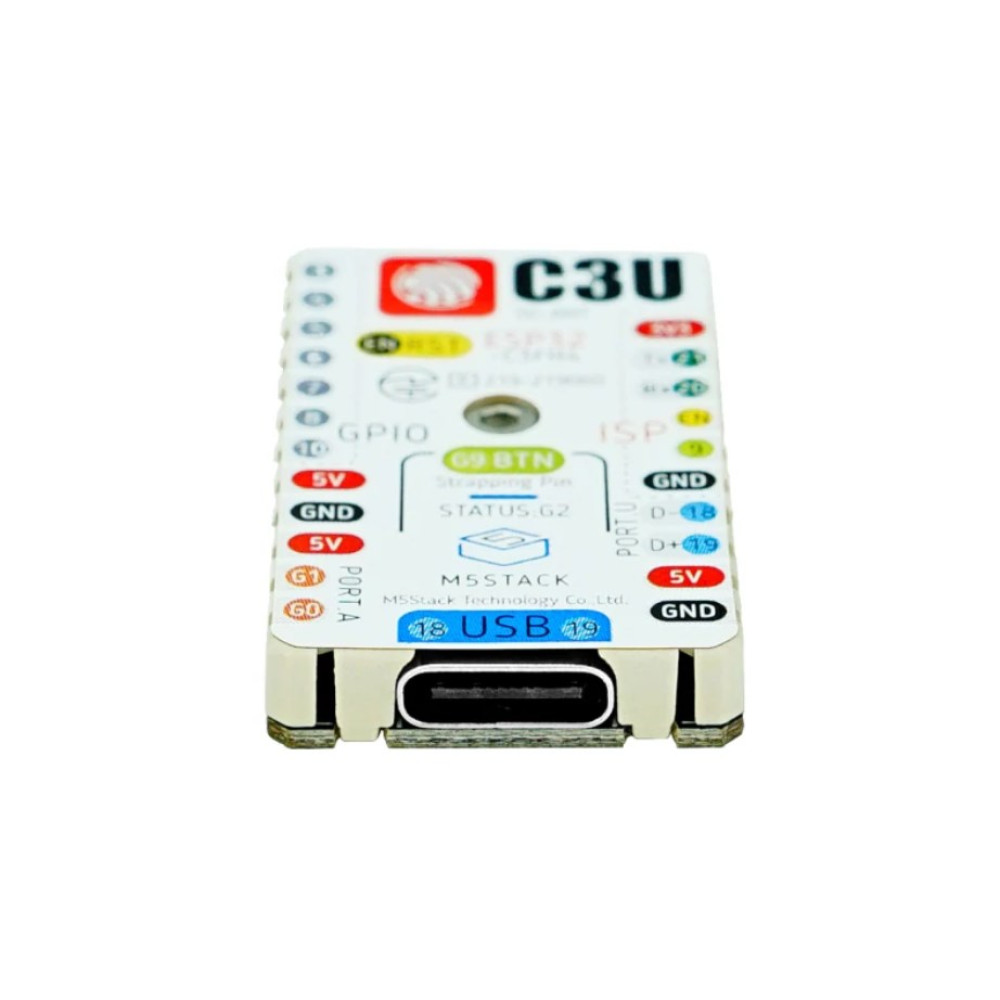

- USB-C
Documentation:
Technical Details:
- Manufacturer: M5Stack
- Manufacturer SKU: K122
- MCU: ESP32-C3 32bit single-core 160MHz
- Memory: 384KB ROM, 400KB SRAM, 8KB RTC SRAM, 4MB FLASH
- WiFi: 2.4Ghz 20-40MHz Bandwidth
- Bluetooth: Bluetooth 5.0, Bluetooth mesh support
- Voltage: 5V
- Current: 500mA
- USB Interface: Type-C
- Antenna: 2.4G 3D
- Buttons: 1x programmable button, 1x reset button

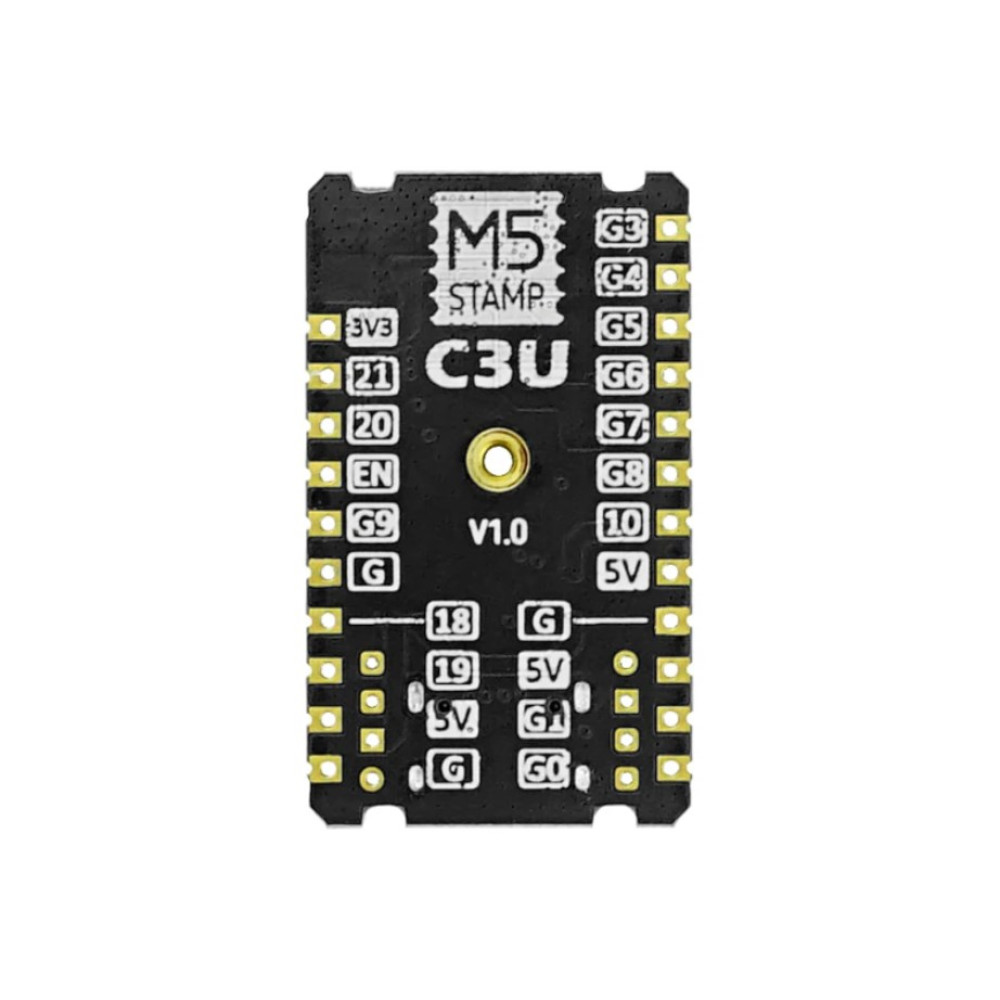

- I/O: G4-G21

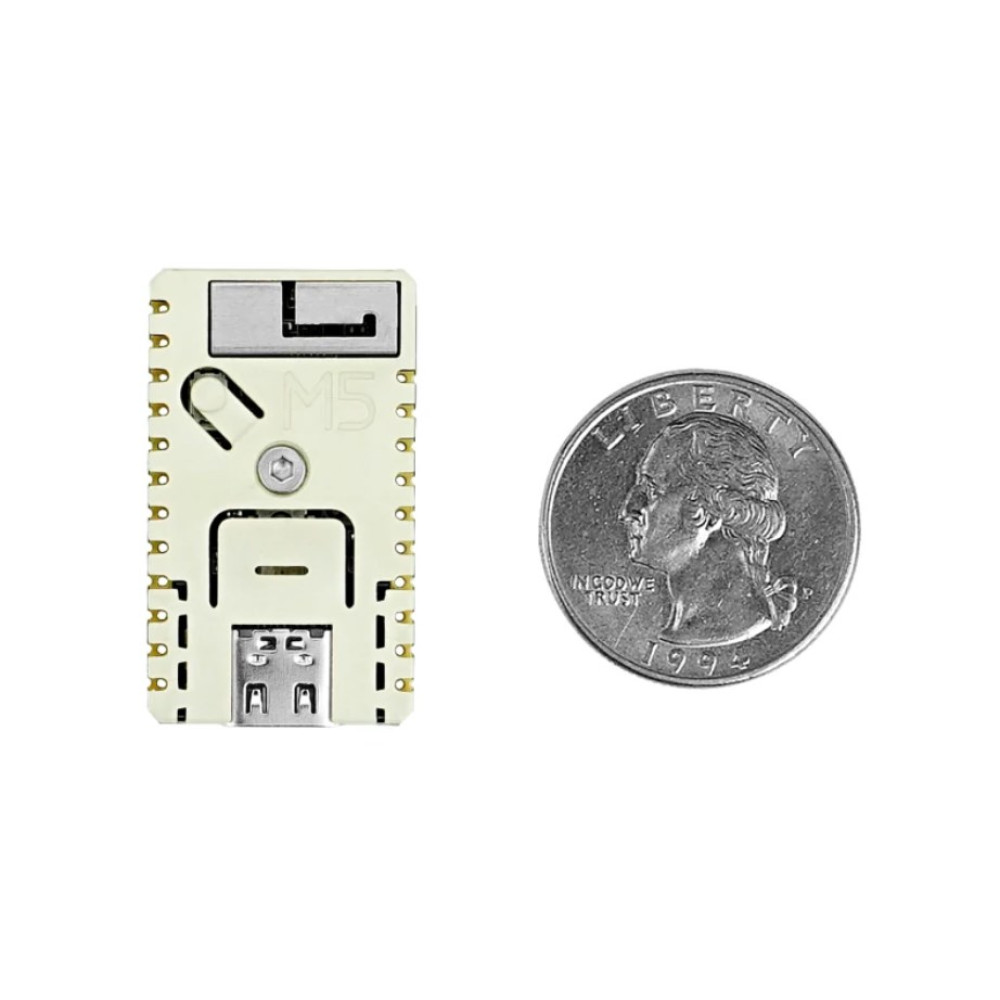

- Dimensions: 34 x 20 x 4.5mm
- Weight: 11g

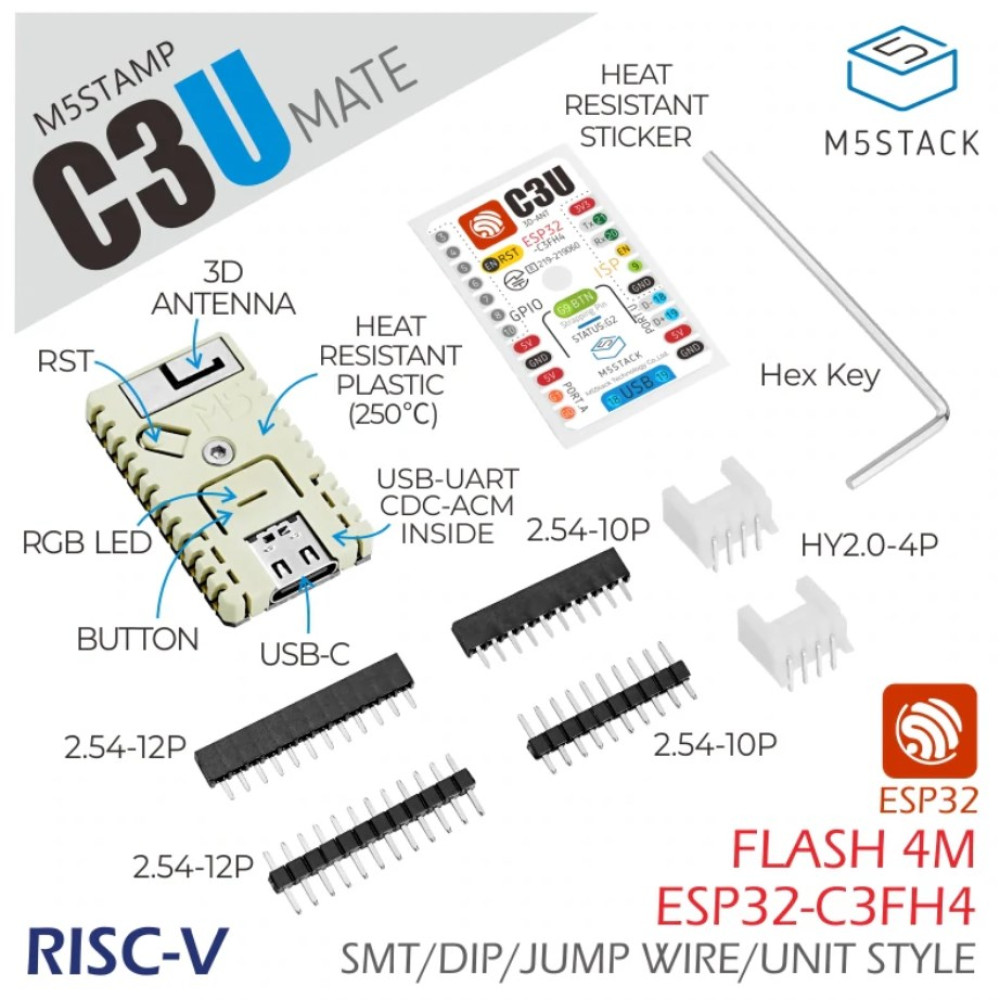

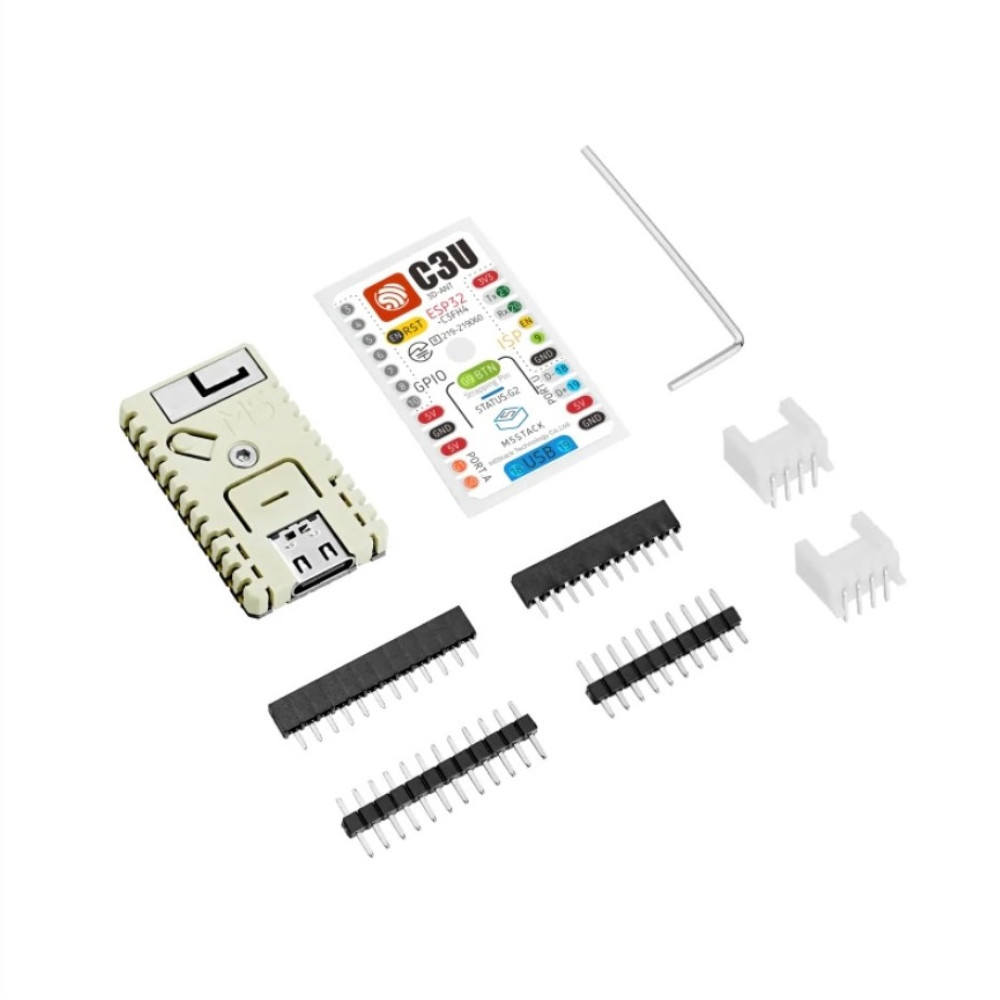

Delivery includes:
- 1x M5Stamp C3U

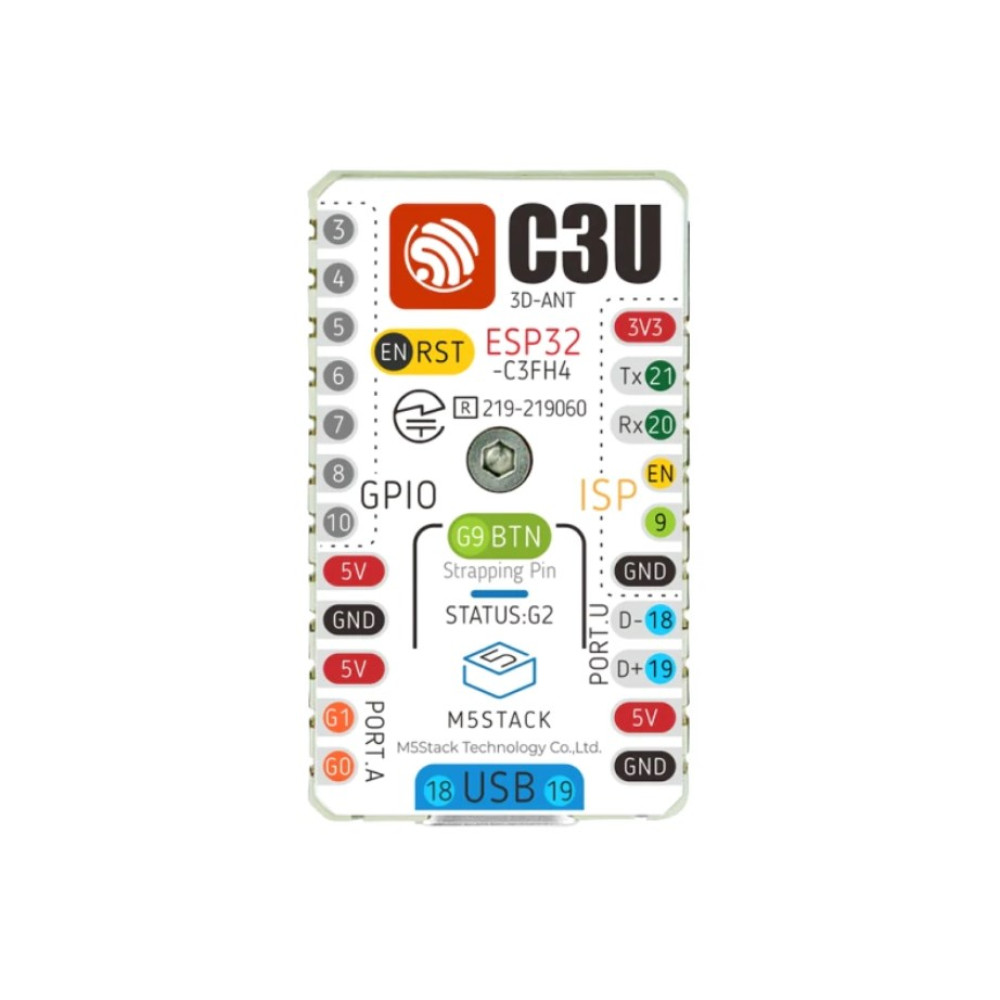

- 1x Pin Layout Sticker
- 2x 9pin header
- 2x 6pin header
- 2x 90° Grove Connector
- 1x M2 Allen key
M5Stamp C3U with pin headers
- Brand: M5Stack
- Product Code: 422263
- Availability: In Stock
-
CHF8,90
- Ex Tax: CHF8,23
