M5Stack Meshtastic Unit C6L ESP32-C6 SX1262

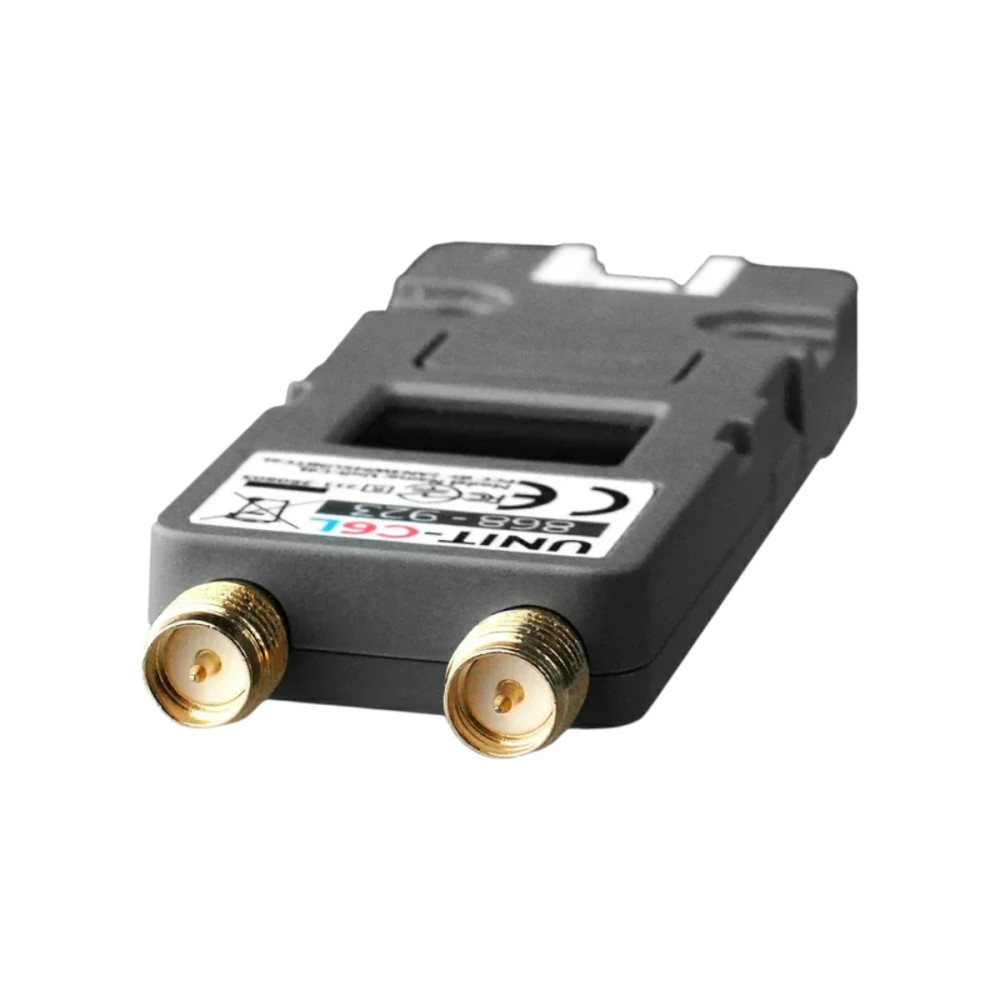

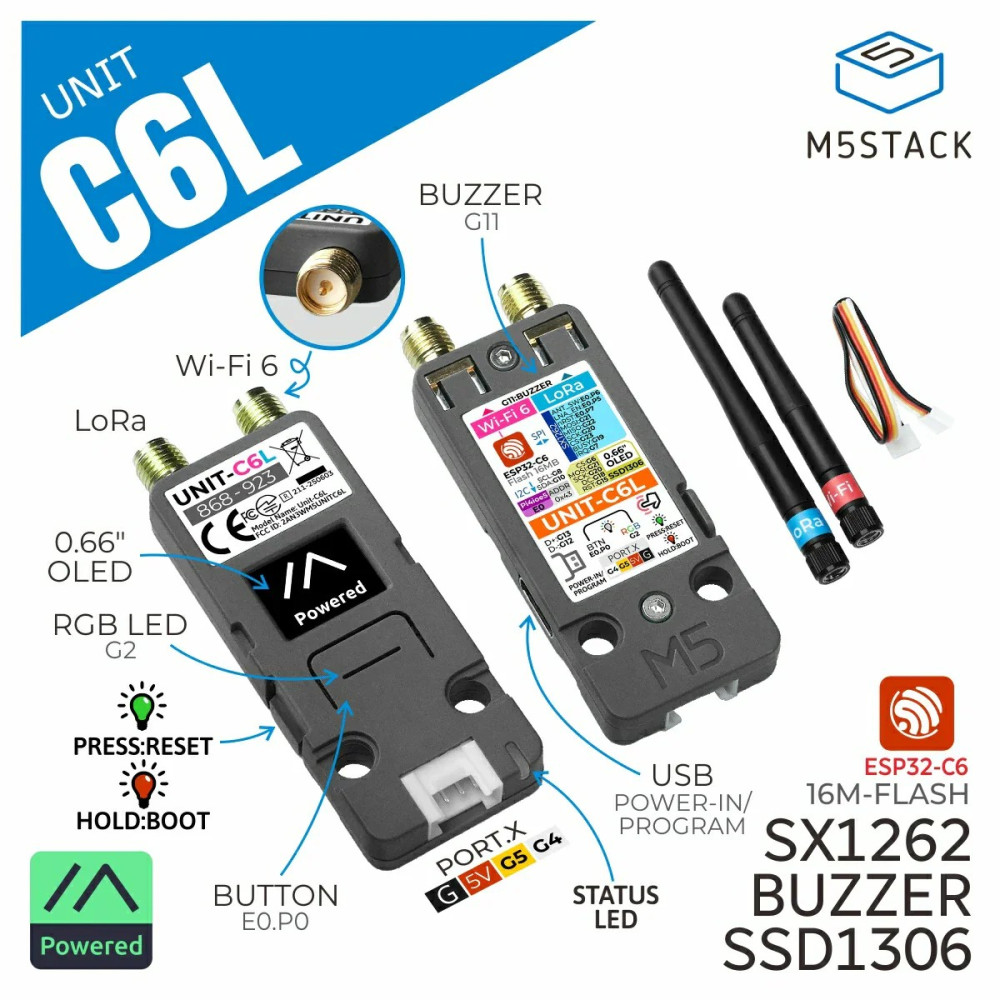

The M5Stack Meshtastic Unit C6L is a highly integrated LoRa communication unit specifically designed for private LoRa networks and use with the Meshtastic firmware. At its core, it runs an ESP32-C6 RISC-V processor with a 160 MHz high-performance core and 20 MHz low-power core, combined with an SX1262 transceiver and an RF switch stage. The device supports LoRa radio in the range of 868–923 MHz and features two SMA antenna ports for 2.4 GHz Wi-Fi 6 and LoRa to ensure a stable wireless connection. An integrated 0.66-inch OLED display with a resolution of 64×48 pixels and a programmable RGB LED facilitate user interaction. Additionally, a buzzer and a button are available for providing simple user feedback. Thanks to the HY2.0-4P expansion interface and LEGO-compatible mounting holes, sensors or modules can be easily attached, enabling versatile projects. Overvoltage protection is provided by the AW32901FCR chip. With support for Meshtastic, off-grid networks for messaging and sensor monitoring can be easily established. The combination of Wi-Fi 6 and LoRa opens up a wide range of applications in industrial and outdoor communications. The board is compact (62 × 24 × 8 mm) and weighs only 13.6 g without the antenna. A USB-C port supplies 5 V power; in sleep mode, the device requires less than 1 mA, and when transmitting continuously with LoRa, the power consumption is around 80 mA. Due to its lightweight and robust construction, the unit is ideal for mobile projects where long range and low power consumption are crucial.

Features:

Supports Meshtastic networks and is ideal for off-grid communication.
Powerful ESP32-C6 processor with Wi-Fi 6 and Bluetooth.
SX1262 LoRa transceiver (868–923 MHz) with separate SMA antenna.
0.66-inch OLED display and programmable RGB LED for status indication.
Buzzer and button for simple feedback and control actions.
Overvoltage protection by AW32901FCR circuitry.
HY2.0-4P connector and LEGO-compatible mounts for modular expansions.

Use Cases:

Smart agriculture projects for environmental parameter monitoring
Industrial facility monitoring and telemetry
Outdoor communication for hiking or expeditions
Remote home automation and energy meter reading
Off-grid messaging network for emergency or group communication

Download and Links:

Technical Specifications:

Manufacturer: M5Stack
Manufacturer SKU: U202
SoC: ESP32-C6 (RISC-V 32-bit 160 MHz + 32-bit 20 MHz)
Flash: 16 MB
Display: SSD1306 0.66″ OLED Monochrome, 64×48 pixels
Radio Module: SX1262 LoRa, 868–923 MHz
Wi-Fi Antenna: 84 mm, SMA socket, 2.4 GHz, 3 dBi
LoRa Antenna: 108 mm, SMA socket, 868 MHz, 3 dBi
Max. LoRa Transmission Power: +22 dBm
LoRa Sensitivity: –147 dBm (Low Data Rate Mode)
Power Supply: 5 V DC via USB-C
Power Consumption: Sleep (HY2.0-4P) ≈ 697 µA; Sleep (USB-C) ≈ 866 µA; LoRa RX ≈ 85 mA; LoRa TX ≈ 80 mA
Dimensions: 62 × 24 × 8mm (without antenna)
Weight: 37g
