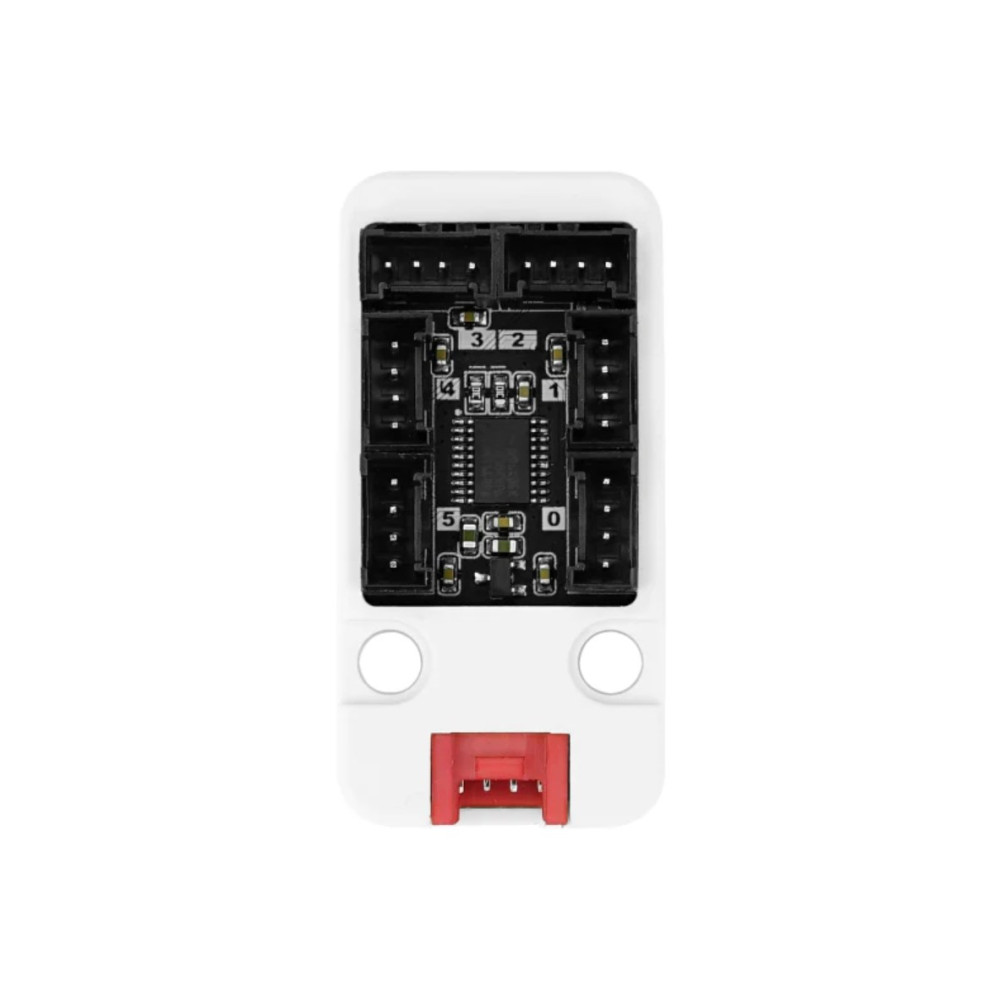

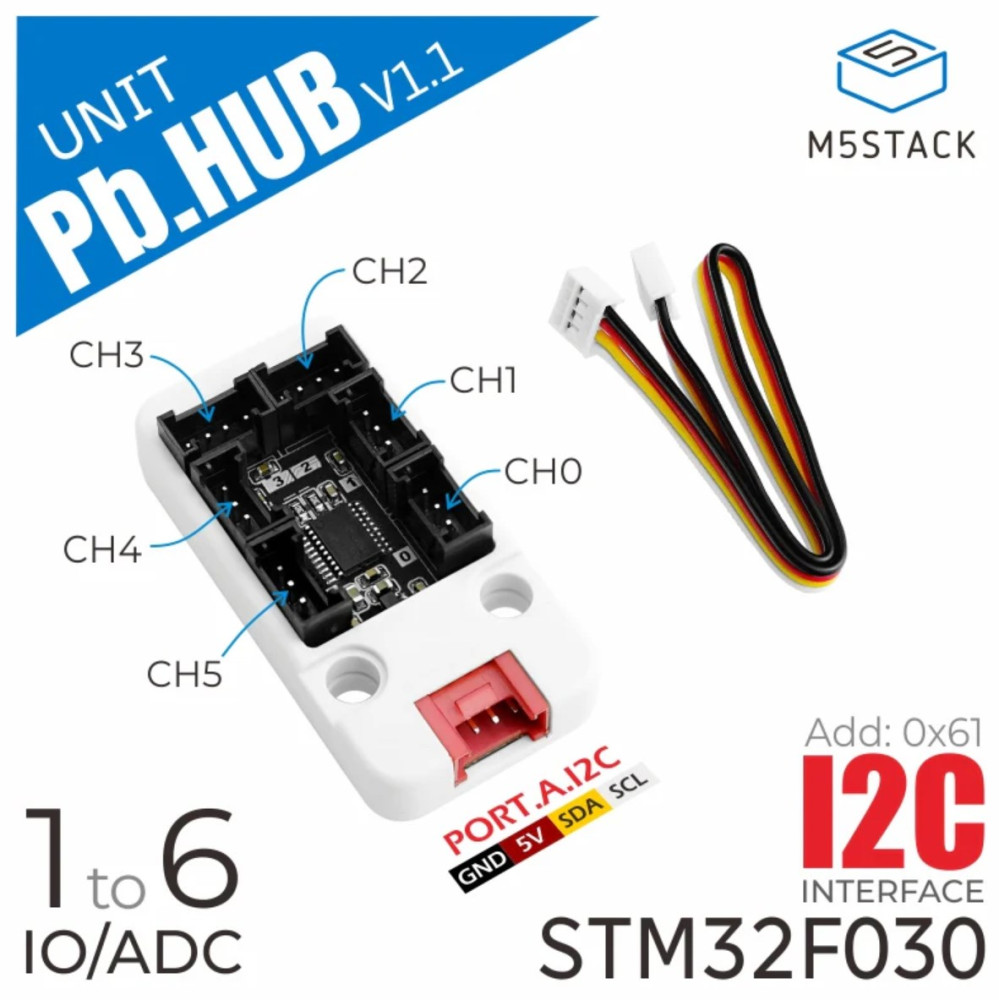

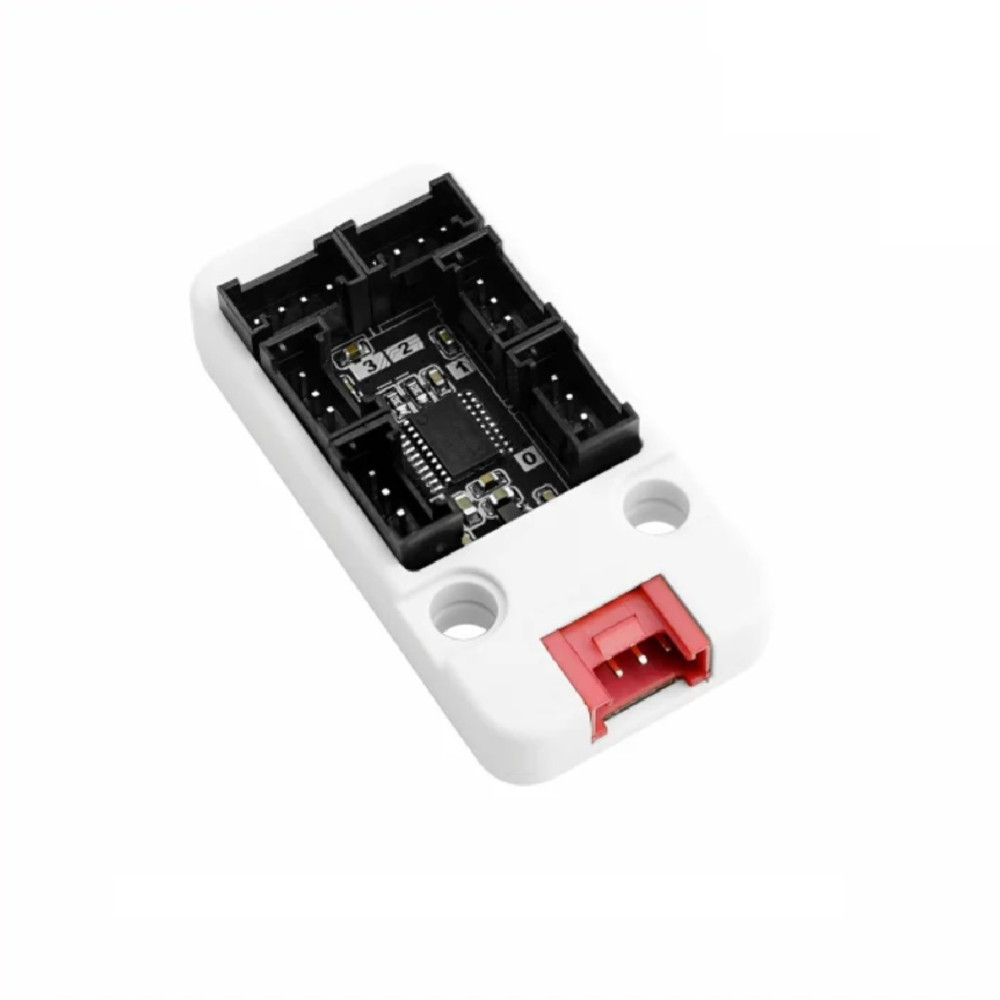

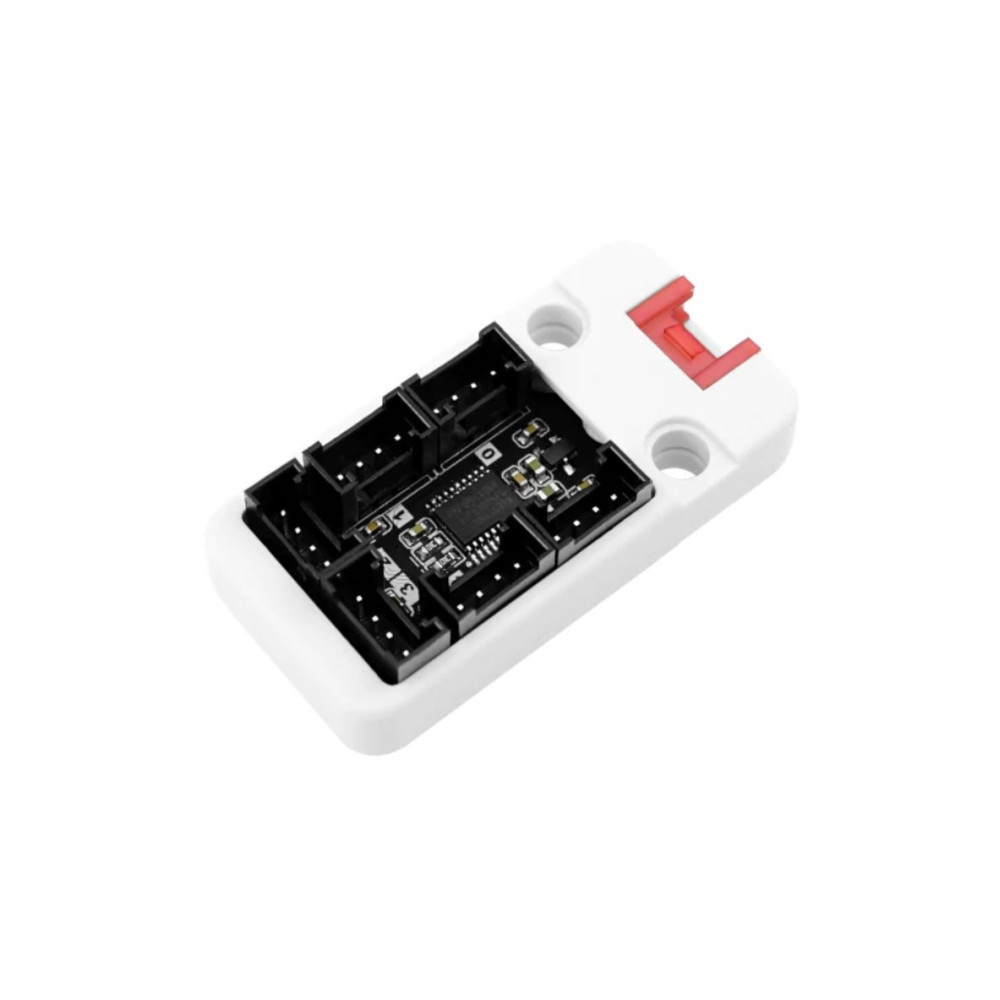

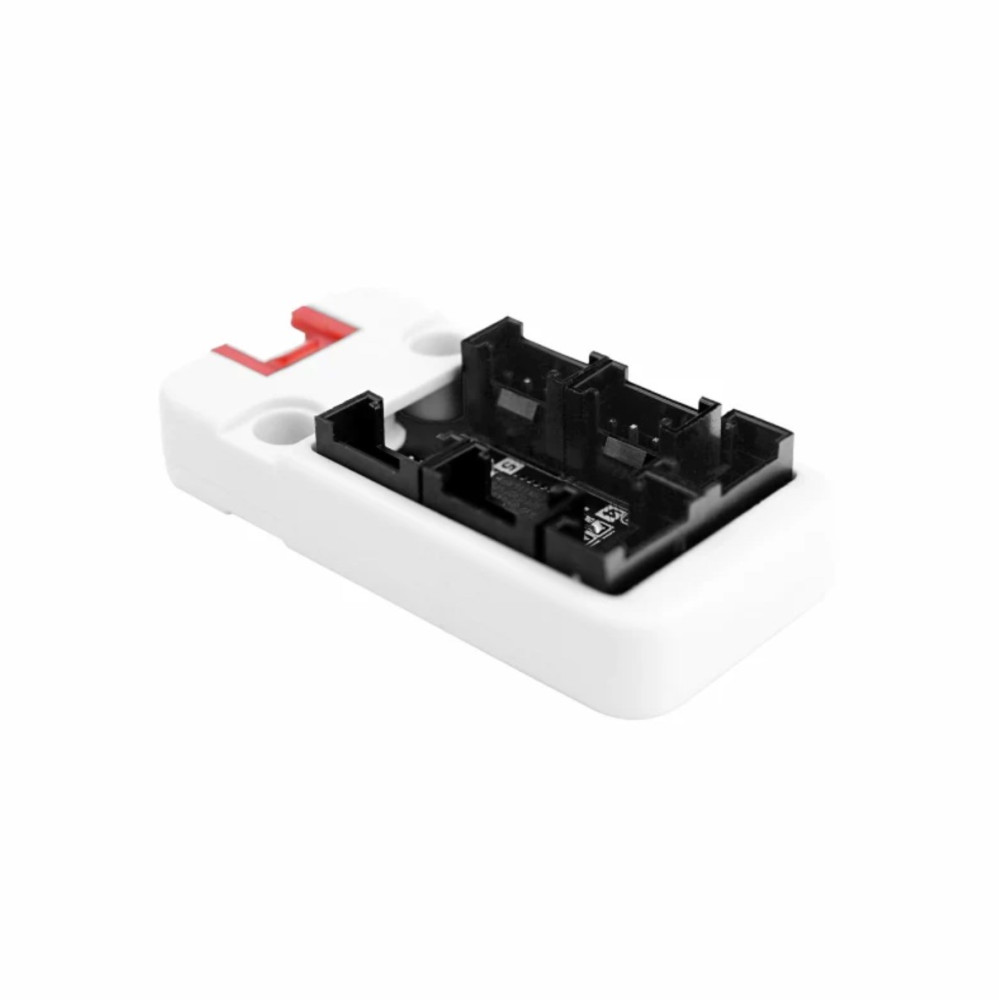

M5Stack 6-Way IO Unit PbHUB v1.1

Discover the M5Stack 6-Channel IO Unit PbHUB v1.1, your solution for versatile expansion options in electronics and automation. This small but powerful device allows you to control up to six different channels via a simple I2C interface. Whether for controlling digital signals, modulating PWM signals for precise analog applications, driving servo motors, collecting ADC data or managing RGB LEDs - the PbHUB offers you a wide range of functions. Its heart, the STM32F030 microcontroller, guarantees efficient and reliable control that can be seamlessly integrated into your projects. This hub is ideal for applications in robotics, home automation and many other IoT projects where versatile and expandable control is required.


Features:

  • Six GPIO ports for expansion.
  • One I2C input for seamless connectivity.
  • Integrated control through STM32F030 microcontroller.
  • Provides support for various control functions such as PWM, ADC Sampling and Servo control.
  • Compact design.
  • Easy and flexible mounting with two brick holes

Example Applications:

  • Expand the control system of a self-built robot with additional sensors and actuators.
  • Implement a colorful RGB LED control for your home theater system.
  • Use the hub in educational projects to teach students the basics of digital and analog signal processing

Download and Links:


Technical Specifications:

  • Manufacturer: M5Stack
  • Manufacturer SKU: U041-B

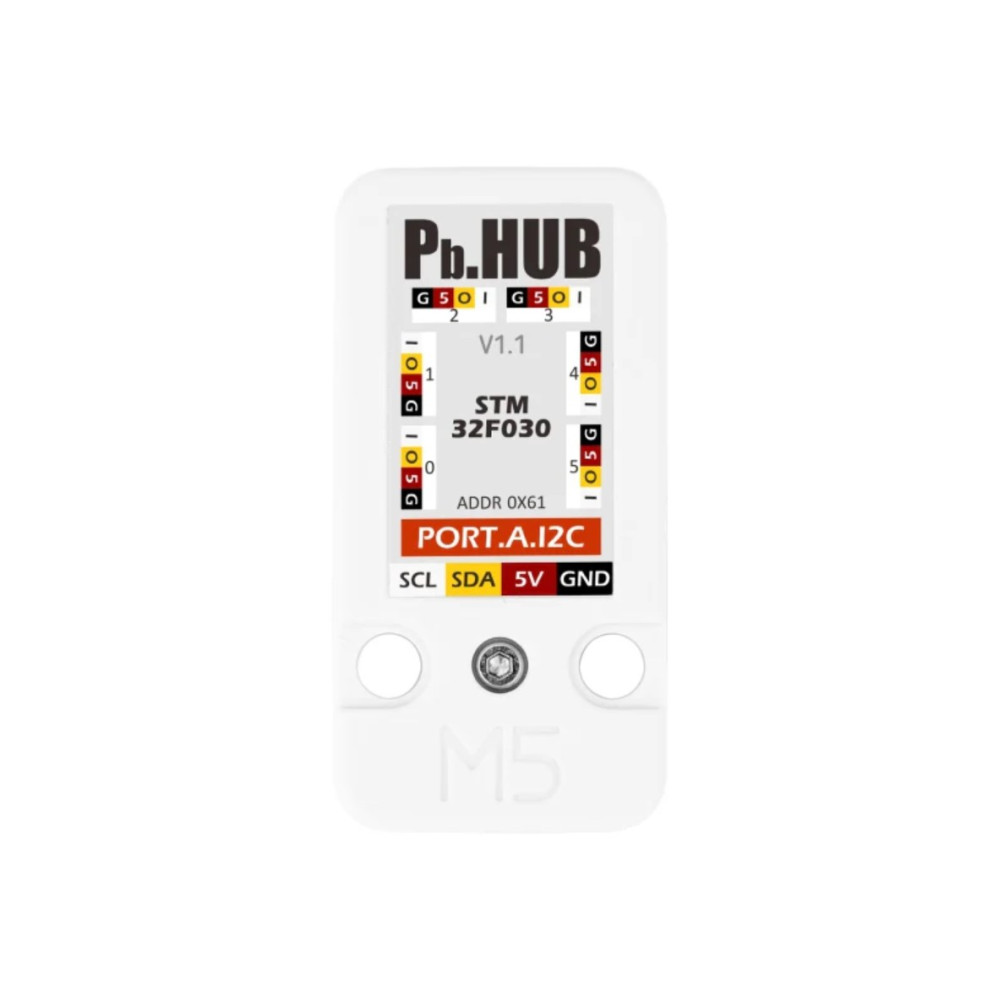

  • Communication Protocol: I2C: 0x61 (modifiable via register)
  • Net Weight: 6.7g
  • Dimensions: 48 x 24 x 12mm
  • Weight: 12.5g

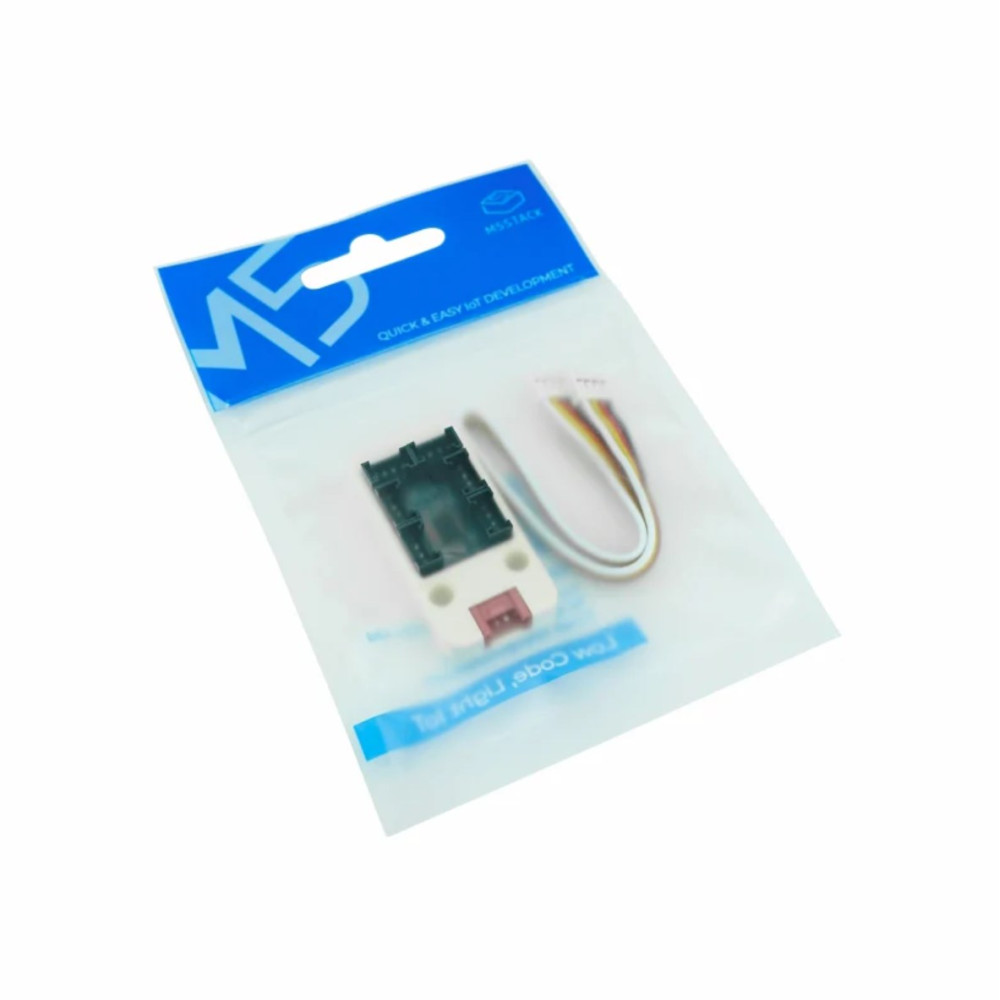

Package Content:

  • 1x M5Stack 6-Channel IO Unit PbHUB v1.1
  • 1x HY2.0-4P Grove Cable 20cm


Write a review

Note: HTML is not translated!
    Bad           Good

M5Stack 6-Way IO Unit PbHUB v1.1

  • Brand: M5Stack
  • Product Code: 423551
  • Availability: In Stock
  • CHF11.90

  • Ex Tax: CHF11.01
