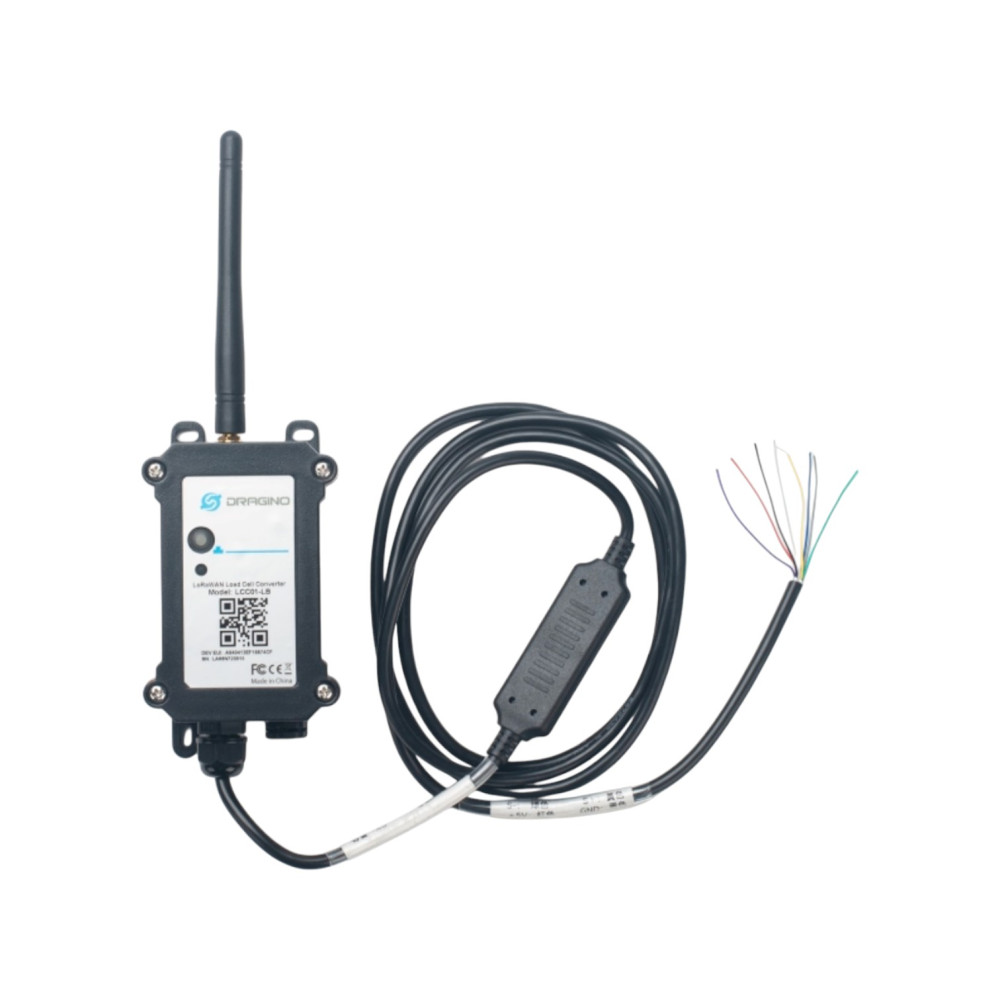

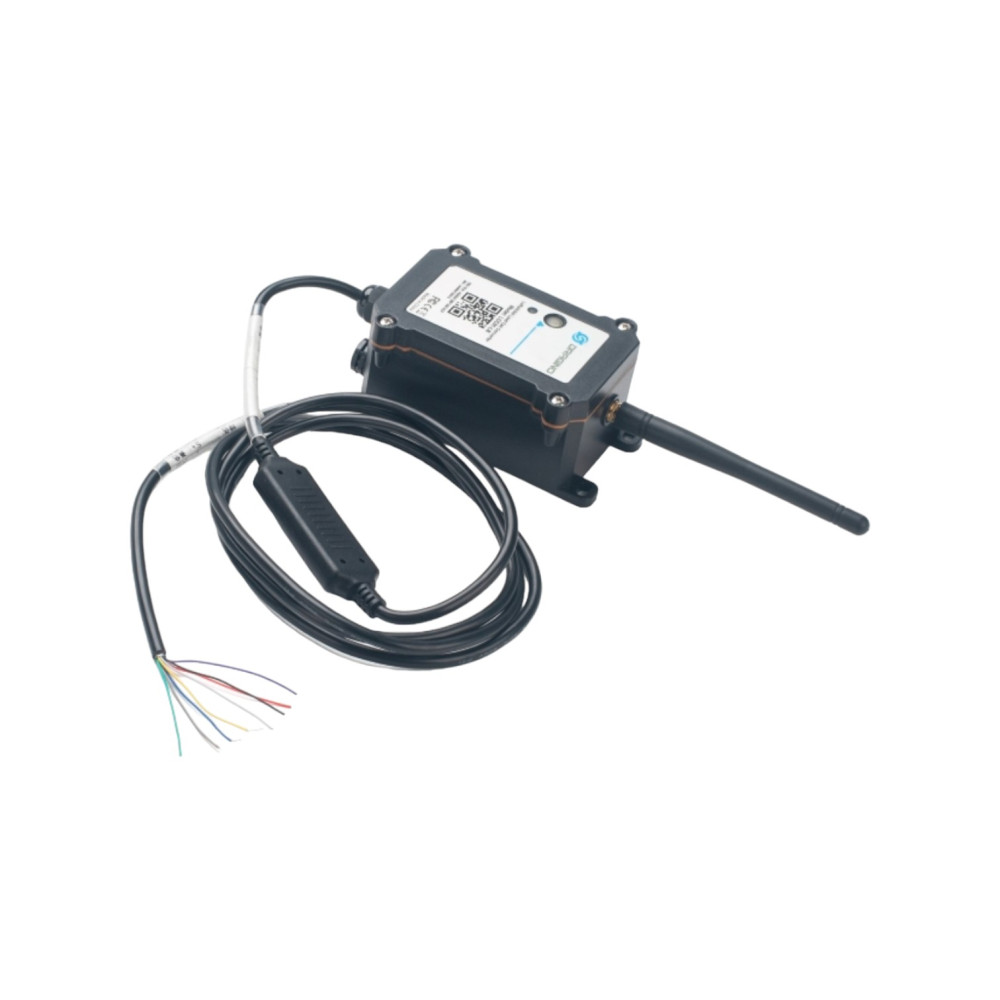

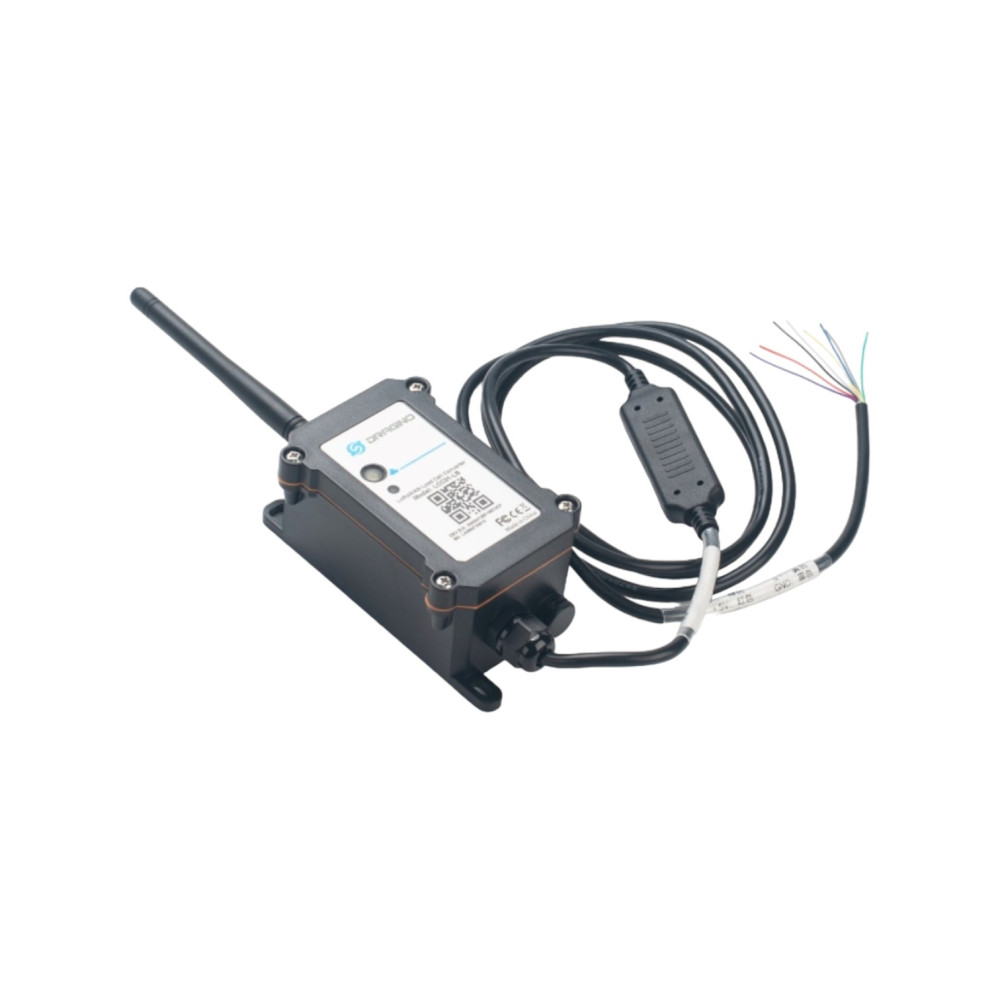

LCC01-LB LoRaWAN Weight Sensor Node 868MHz

The LCC01-LB LoRaWAN Load Cell / Weighing Cell Amplifier is your key to precise weight measurement in a variety of IoT applications. This advanced device accurately captures the weight of objects and securely transmits the data over the LoRaWAN radio protocol to an IoT server. It features a universal 4-wire interface that allows the connection of various types of load cells and supports measurement ranges from a few grams up to several tons. The LCC01-LB is ideal for a wide range of applications, including truck, rail, supermarket, and industrial scales. By using LoRa technology, data can be transmitted over long distances with low energy consumption. The device is characterized by high interference resistance and offers easy handling through Bluetooth configuration and wireless OTA updates. Equipped with an 8500mAh Li-SOCI2 battery, the LCC01-LB guarantees long-term usage of up to 5 years.

Each sensor is preloaded with a set of unique keys for LoRaWAN registrations. These keys are registered on the local LoRaWAN server and the sensor automatically establishes a connection when network coverage is available after power-on.

Recommended accessories:

• Lora Gateway
• Weighing cell

Especially suitable for beekeepers:

• In addition, the LCC01-LB is excellent for beekeepers who want to monitor the weight of their beehives in order to document the honey production. This precise tool makes it possible to record changes in the hive weight and thus draw conclusions about the activity in the beehive and the amount of honey produced. An indispensable aid for modern beekeeping to efficiently maximize yields and monitor the health of the beehives.

Features:

• Supports LoRaWAN 1.0.3 Class A.
• Extremely low energy consumption for long operating times.
• 4-wire interface for easy connection of various load cells.
• Measurement range from 100g to 10 tons.
• Supports Bluetooth v5.1 and LoRaWAN remote configuration.
• Wireless OTA firmware updates.
• 8500mAh Li/SOCl2 battery for a long operating life
• Waterproof according to IP65
• Optimized housing with new pressure compensation screw
• External LoRa antenna

Application examples:

• Monitoring the weight of beehives to document honey production.
• Weight measurements in logistics and transport, such as truck and station scales.
• Industrial measurements for heavy loads.

Links and downloads:

• Dragino Wiki
• Github

Technical specifications:

• Manufacturer: Dragino
• Manufacturer SKU: LCC01-LB-EU868
• General DC characteristics:
  • Supply voltage: Integrated battery, 2.5V to 3.6V
  • Operating temperature range: -40°C to 85°C
• LoRa specifications:
  • Frequency range EU868
  • Maximum RF output power: +22 dBm
  • RX sensitivity: Up to -139 dBm
  • Excellent blocking immunity
• Battery:
  • Type: Li/SOCI2, non-rechargeable
  • Capacity: 8500mAh
  • Self-discharge: Less than 1% per year at 25°C
  • Maximum continuous current: 130mA
  • Maximum boost current: 2A for 1 second
• Power consumption:
  • Sleep mode: 5µA at 3.3V
  • LoRa transmission mode: 125mA at 20dBm, 82mA at 14dBm
• Cable length: 1.6m
• Dimensions: 127 x 66 x 48mm
• Weight: 310g

Scope of delivery:

• 1x LCC01-LB LoRaWAN Weighing Sensor Node 868MHz
• 5x solder sealing sleeves
