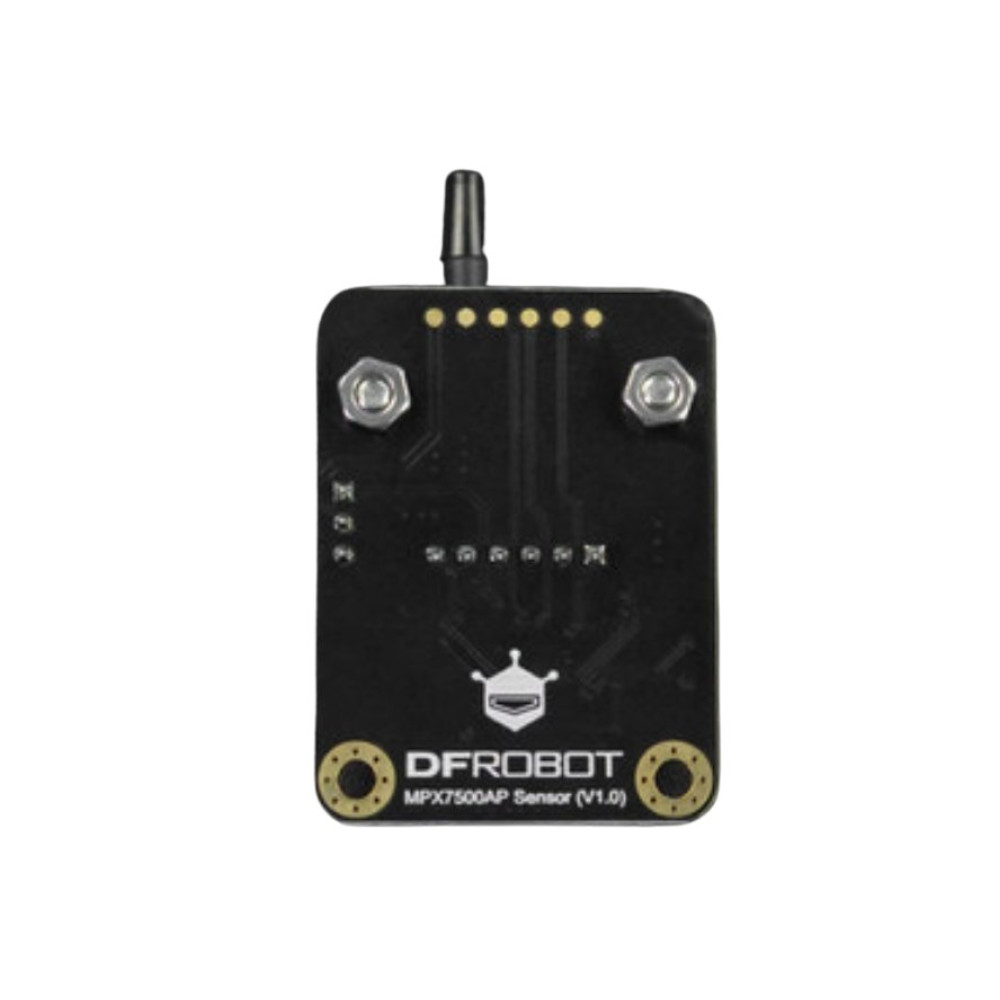

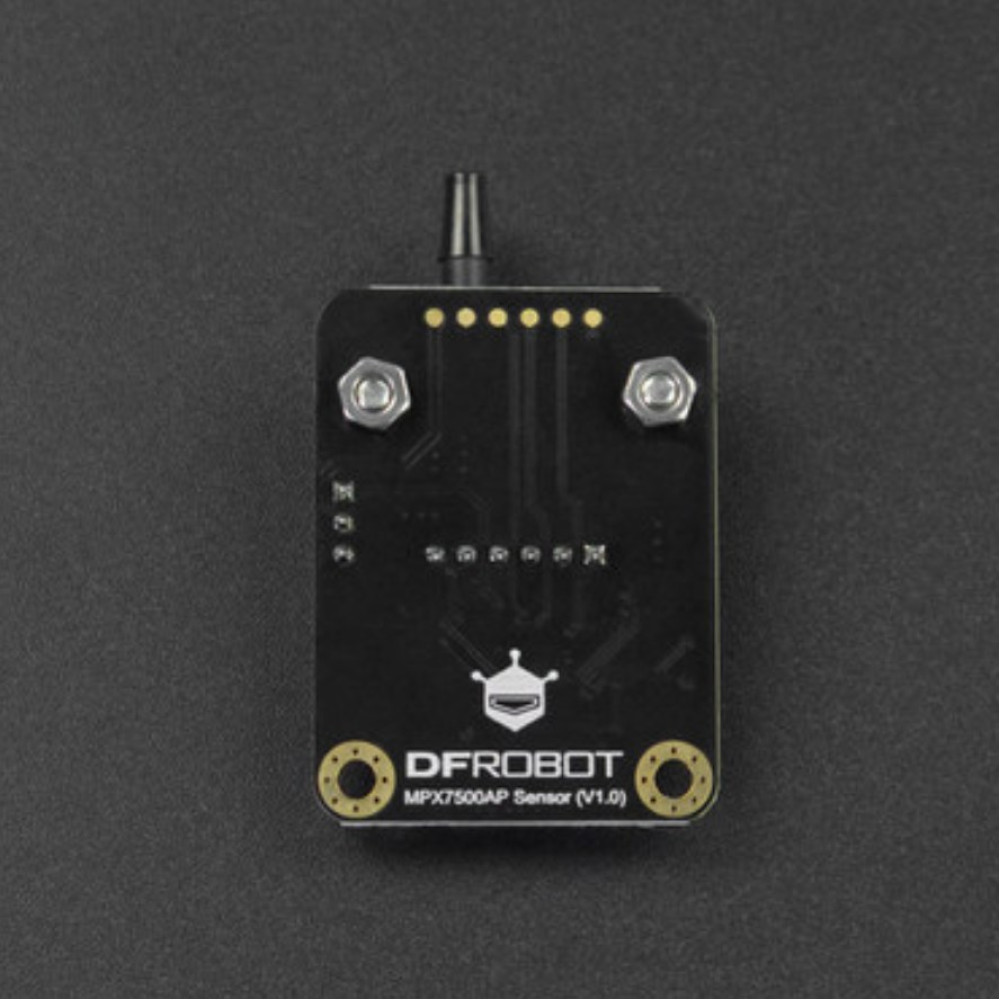

Gravity MX5700AP Air Pressure Sensor Module 15-700kPa
This is a Gravity air pressure sensor module from DFRobot. The MX5700AP sensor measures pressure in a range of 15-700kPa (0.15-7bar) and communicates the value via the I2C interface. The sensor has a conical connection of 3.6-4.6mm onto which a tube can be pushed, for example to measure the pressure in a closed pneumatic system. With a Gravity connection, the module can be connected to a 3.3V or 5V microcontroller such as Arduino or ESP.
Features:
- MX5700AP Air Pressure Sensor
- 15-700kPa (0.15-7bar) measuring range

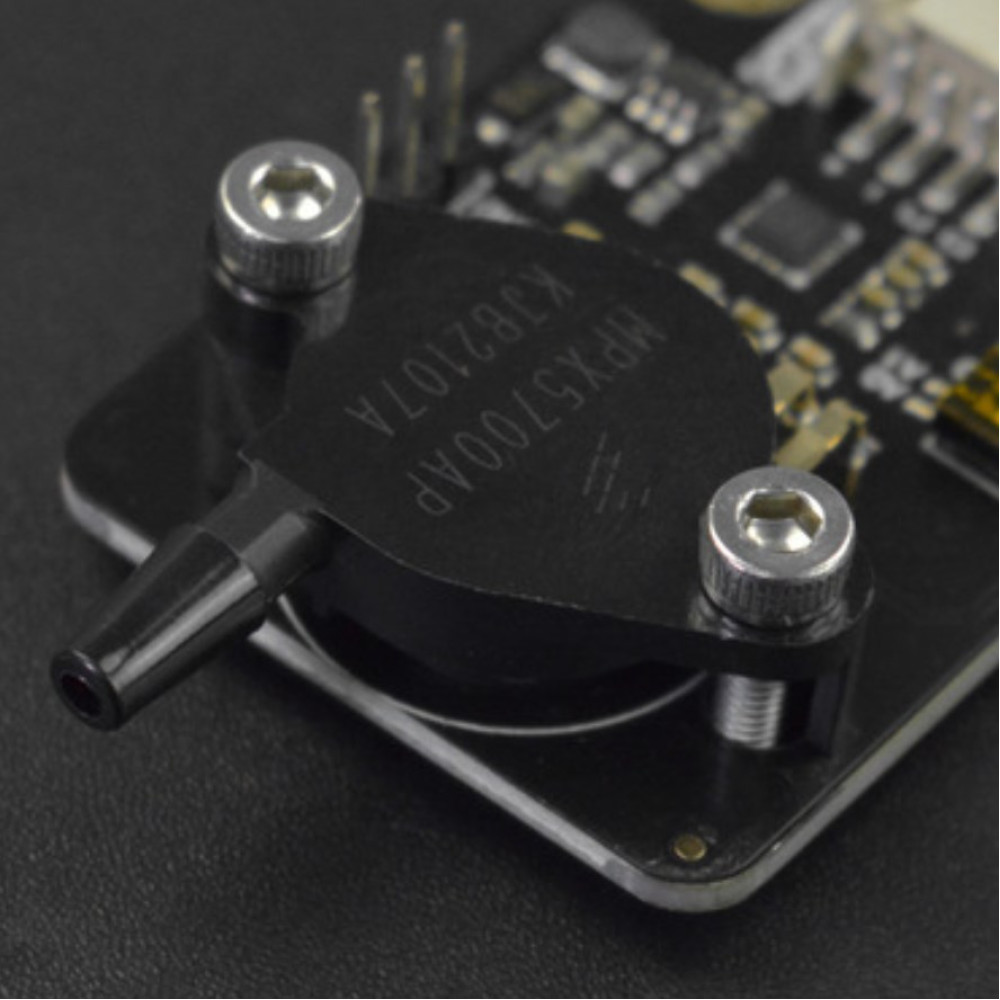

- 3.6-4.6mm Conical connection for hose
- 3.3V or 5V logic compatible
- I2C interface
- Four different I2C addresses selectable via slide switch
Documentation:
Technical Details:
- Manufacturer: DFRobot
- Manufacturer SKU: SEN0456
- Input Voltage: 3.3V/5V
- Measuring range: 15-700kPa (0.15-7bar)
- Resolution: 1kPa
- Operating temperature: 0-85°C

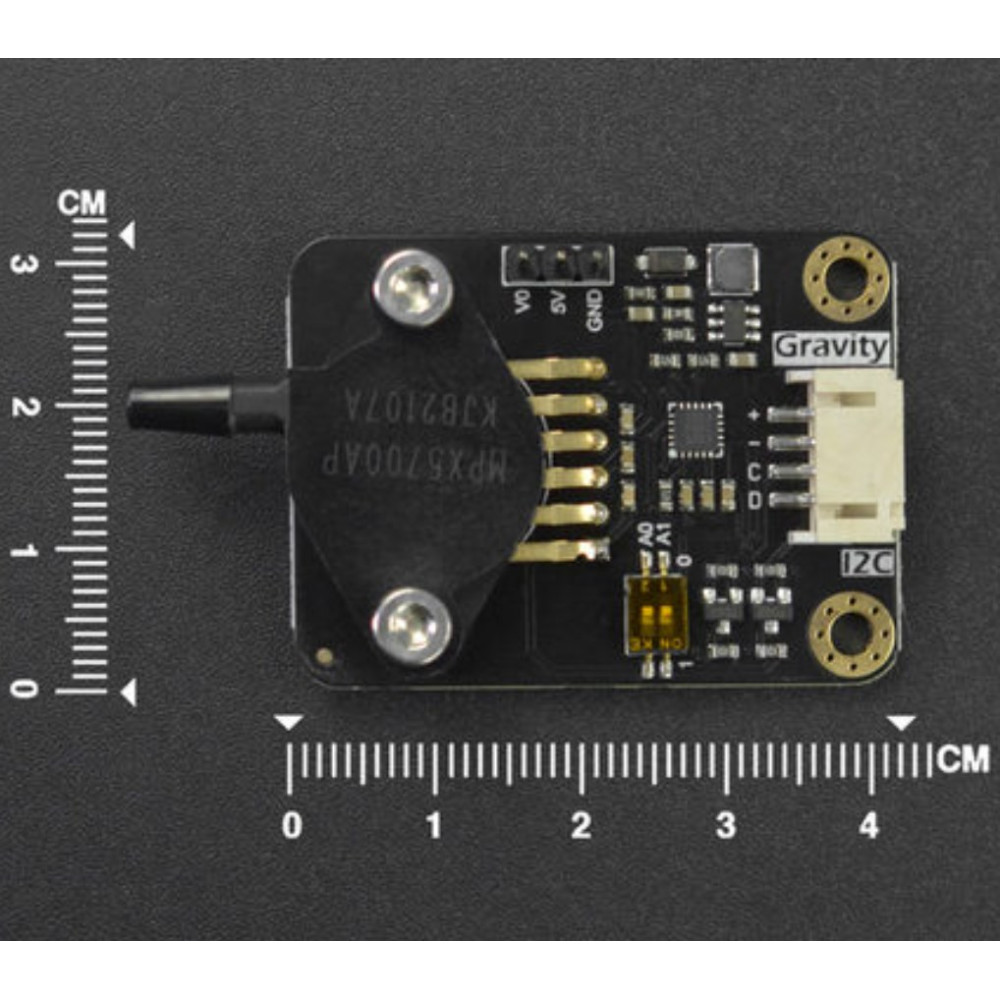

- Dimensions: 32 x 43 x 15mm
- Weight: 21.6g
Scope of Delivery:

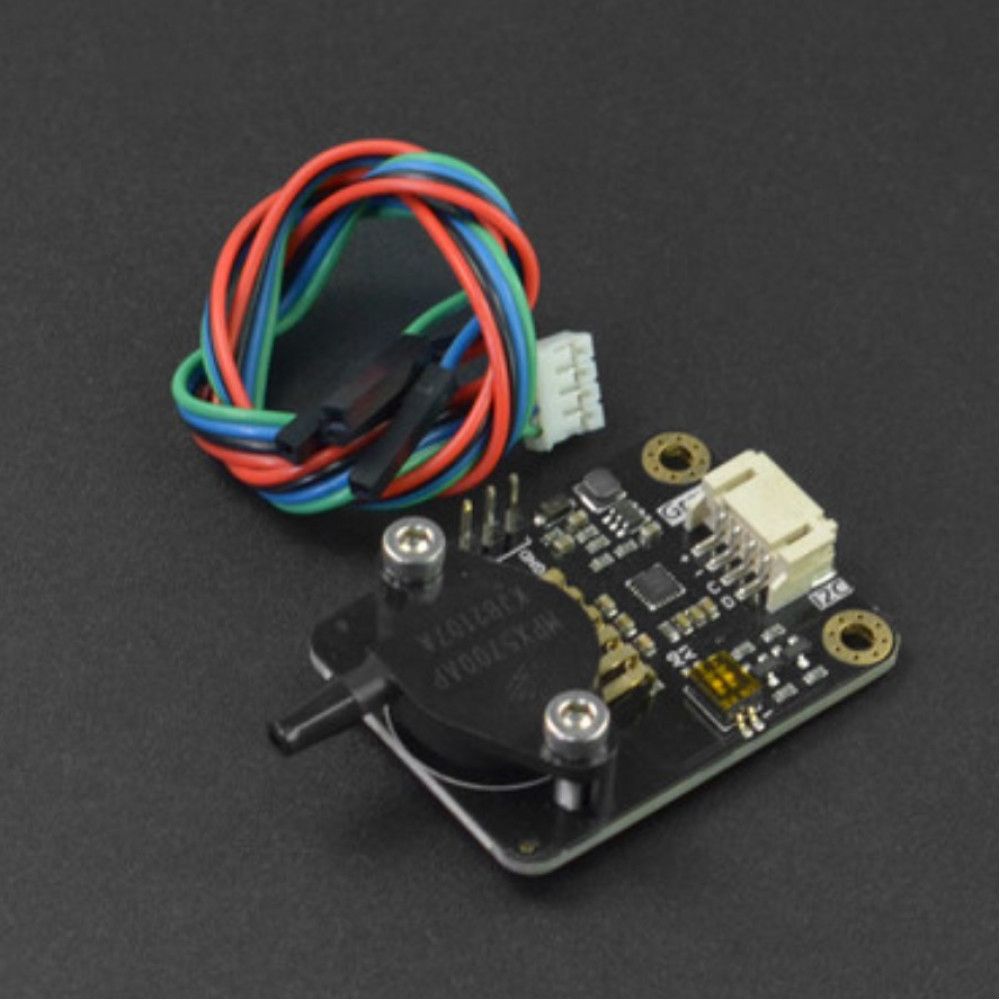

- 1x Gravity MX5700AP Air Pressure Sensor Module 15-700kPa
- 1x 30cm Gravity 4pin IIC/UART Sensor Cable PH2.0 to XH2.54
Gravity MX5700AP Air Pressure Sensor Module 15-700kPa
- Brand: DFRobot
- Product Code: 422149
- Availability: In Stock
-
CHF55,90
- Ex Tax: CHF51,71
