ESP32-P4 10.1-inch HMI Touch Panel with Microphone and Speaker

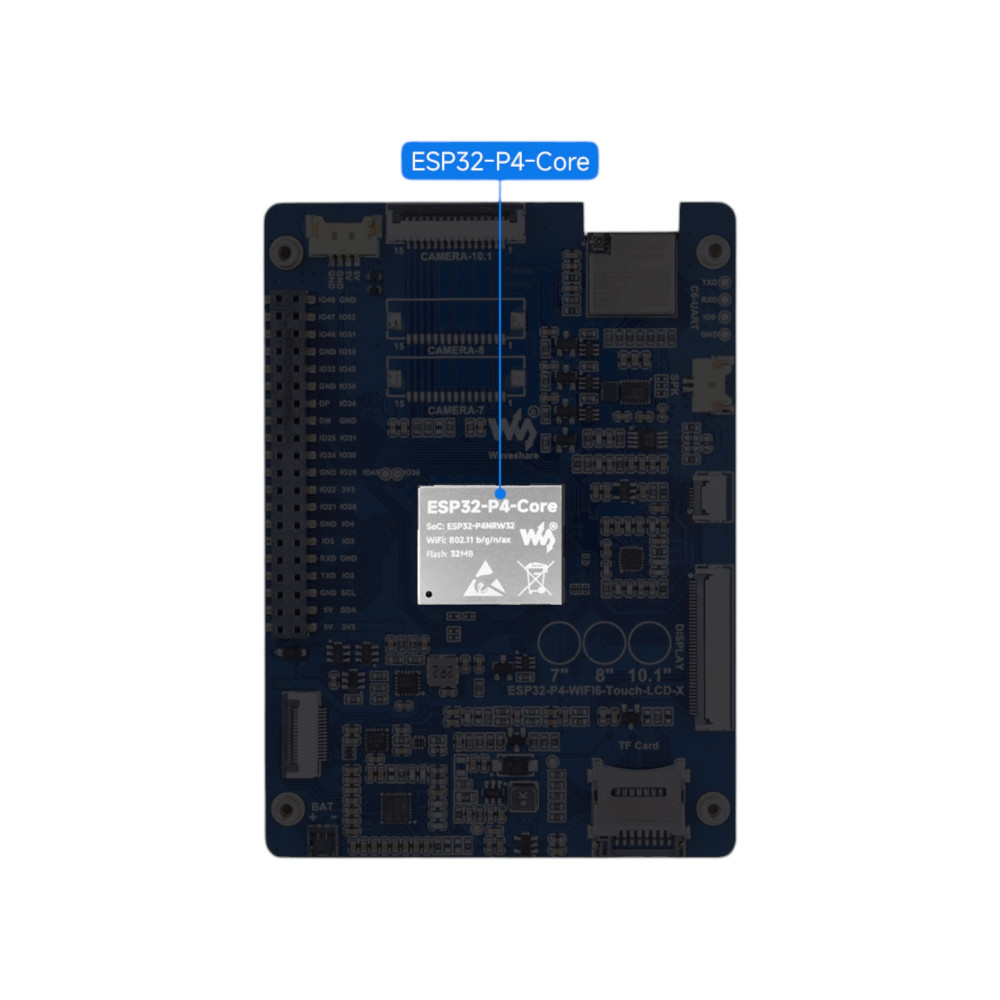

The ESP32-P4 10.1-inch HMI Touch Panel with Wi-Fi 6, microphone, and speaker is a powerful all-in-one development board based on the ESP32-P4 controller featuring RISC-V 32-bit dual-core and single-core processors. It includes a 10.1-inch IPS touch display with a resolution of 800 × 1280 pixels and capacitive ten-point touch recognition. The board integrates an ESP32-C6-MINI module providing 2.4 GHz Wi-Fi 6 and Bluetooth 5 (LE) via the SDIO interface. For audio applications, it features an ES8311 audio codec chip, an ES7210 echo cancellation chip, two microphones, and a speaker output. An integrated front camera with an OV5647 sensor and 5 megapixels enables image and video capture via the MIPI-CSI interface. The ESP32-P4 chip includes 32 MB of PSRAM in the package and 32 MB of onboard NOR flash, supporting powerful image and voice processing including JPEG codec, pixel processing accelerator, and H264 encoder. Security features such as Secure Boot, Flash Encryption, and cryptographic accelerators protect data and applications. The metal housing ensures efficient heat dissipation and includes mounting holes for easy integration. Additional interfaces include USB 2.0 OTG High Speed, an SDIO 3.0 TF card slot, a 40-pin header, and USB Type-C ports for power, programming, and debugging. The display orientation can be switched between landscape and portrait via software.

Recommended Accessories:

Features:

High-performance processor with RISC-V 32-bit dual-core and single-core architecture enables demanding embedded applications.

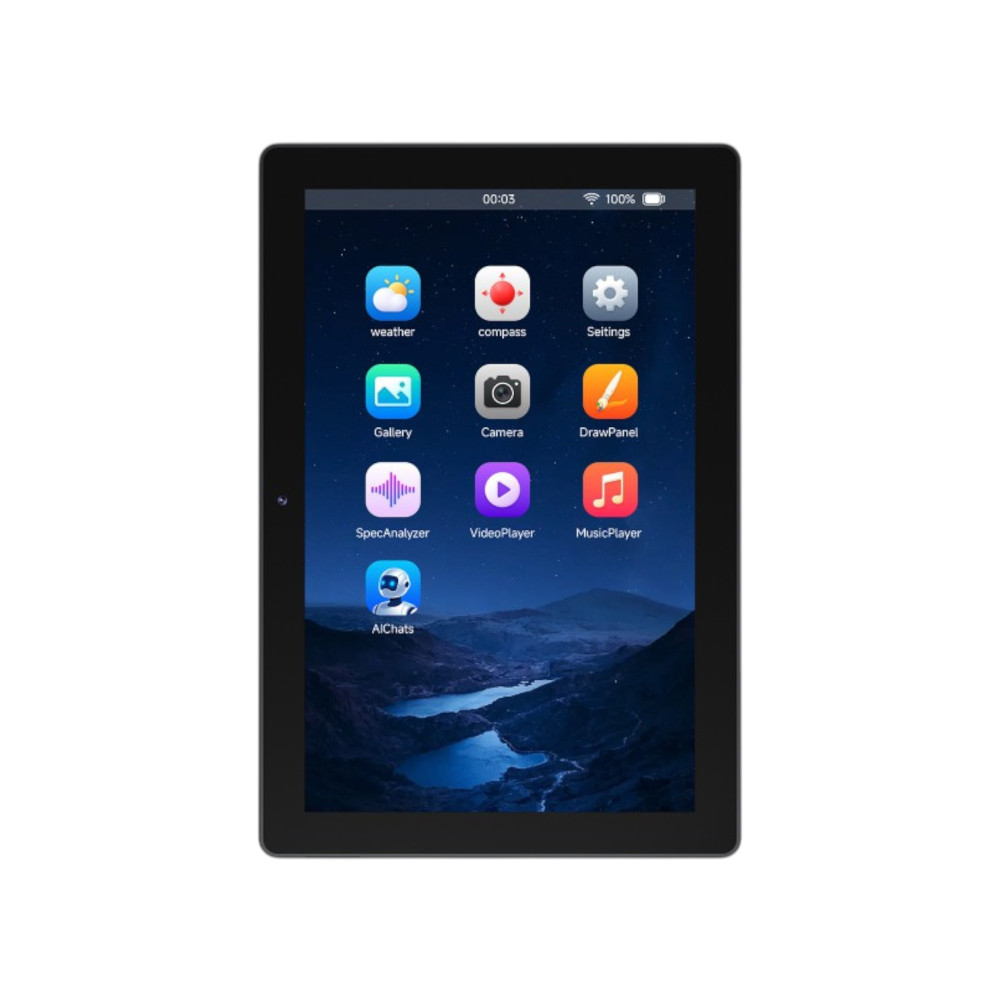

Capacitive 10.1-inch IPS touch display with 800 × 1280 pixels and ten-point touch recognition ensures precise operation.
Wi-Fi 6 and Bluetooth 5 (LE) are provided via the integrated ESP32-C6-MINI module with SDIO protocol.
Dual-microphone array with ES7210 echo cancellation and ES8311 audio codec enables high-quality audio input and output.
Integrated 5-MP front camera with OV5647 sensor supports video recording up to 1080p at 30 fps.

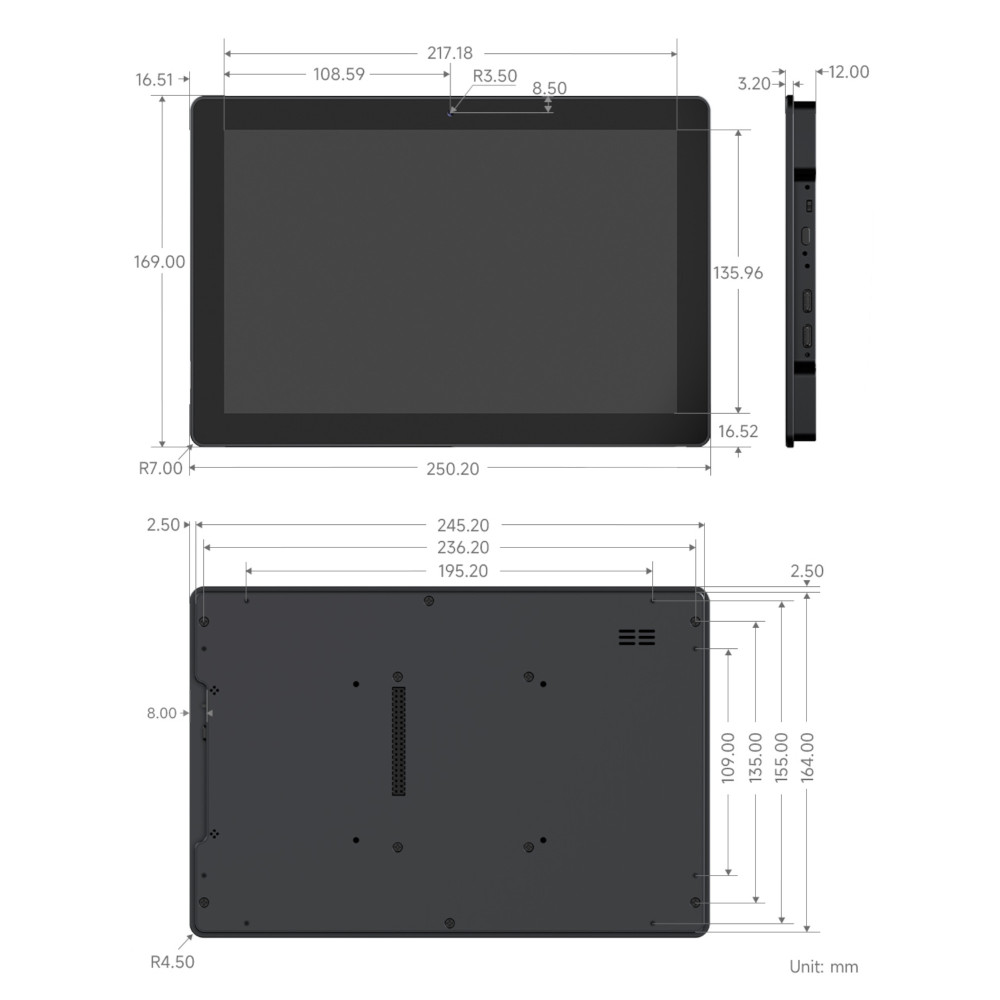

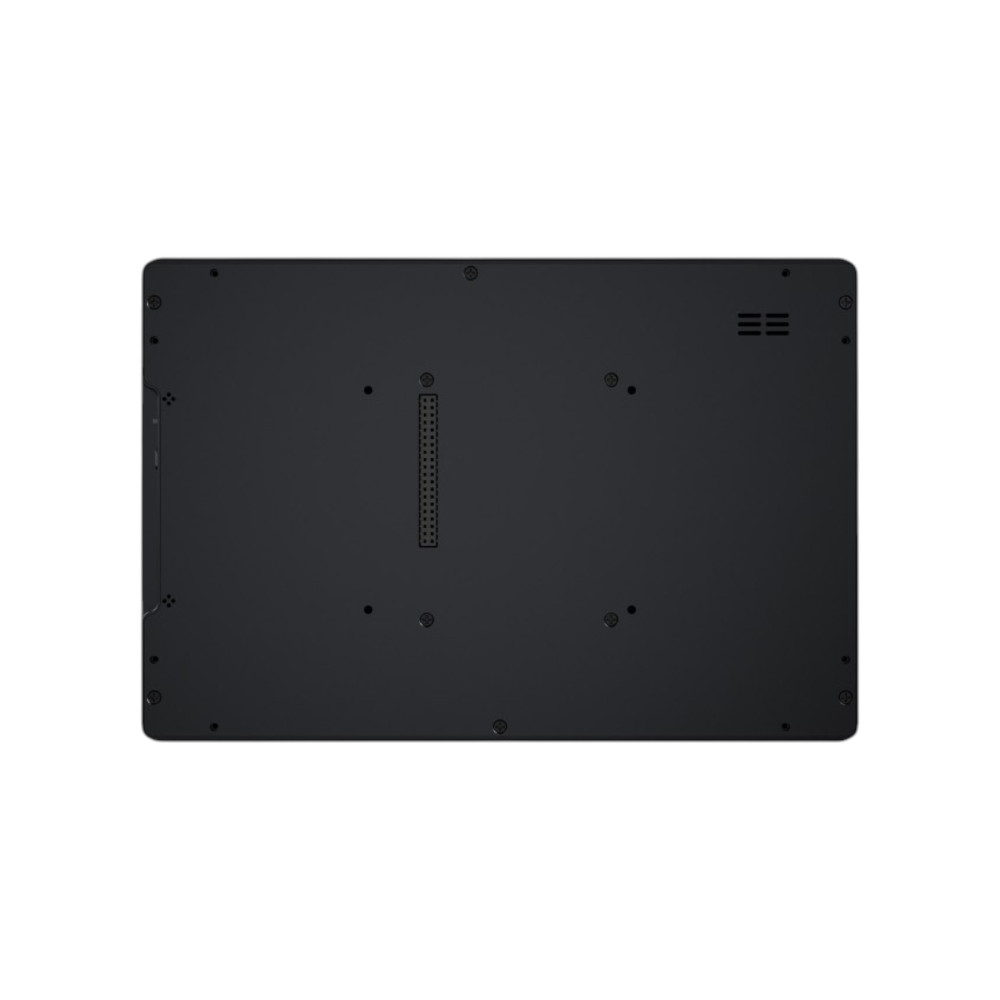

Full-metal housing with efficient heat dissipation and mounting holes simplifies integration into existing systems.

Application Examples:

Touch-based smart home terminal for centralized control of lighting, heating, and devices.
HMI panel for industrial control applications with real-time visualization of process data.
AI-powered voice assistant with integration to online speech models like DeepSeek.
Smart wall switch with graphical user interface and voice control.
Prototyping platform for IoT projects with camera, audio, and wireless connectivity.
