The R3D PETG-Silk Green Filament combines the proven properties of PETG with an elegant silk-gloss effect. This filament is suitable for use in standard FDM 3D printers and produces printed objects with a glossy, silky-shimmering surface. PETG offers a good balance of strength, impact resistance, and moderate flexibility as a printing material. The tensile strength is 42 MPa, while the flexural strength is 75 MPa. The material has a low moisture absorption of 0.4% and is compatible with common printing surfaces such as BuildTak, glass, Blue Tape, and PEI. The spool contains 1 kg of filament with a diameter of 1.75 mm and a tight tolerance of ±0.02 mm. The filament is compatible with AMS systems and can be used with nozzle sizes from 0.4 to 0.8 mm, both with copper and hardened steel nozzles. For optimal print quality, the manufacturer recommends storing the filament dry and cool between 15 and 25 °C, protected from UV light. Each spool is sealed and packaged with silica gel to prevent moisture absorption.

Recommended Accessories:

• 1 Liter Isopropyl Alcohol / Isopropanol 99.8%
• 3DLac Adhesion Spray 400ml
• Brass Wire Brush for Hotend / Nozzle Cleaning
• 3D Printer Accessory Kit
• Creality Space Pi Filament Dryer Dry Box
• Filament Vacuum Sealing Set Pro 3 eVacuum by eSun

Features:

• Silk-gloss effect gives printed objects a high-quality, shimmering surface.
• Tight diameter tolerance of ±0.02 mm ensures uniform material extrusion.
• AMS compatibility allows use in automated material change systems.
• Low moisture absorption of 0.4% ensures stable material quality.
• Versatile nozzle compatibility allows use with copper and hardened steel nozzles from 0.4 to 0.8 mm.
• Compatibility with various printing surfaces such as BuildTak, glass, Blue Tape, and PEI offers flexible usage options.

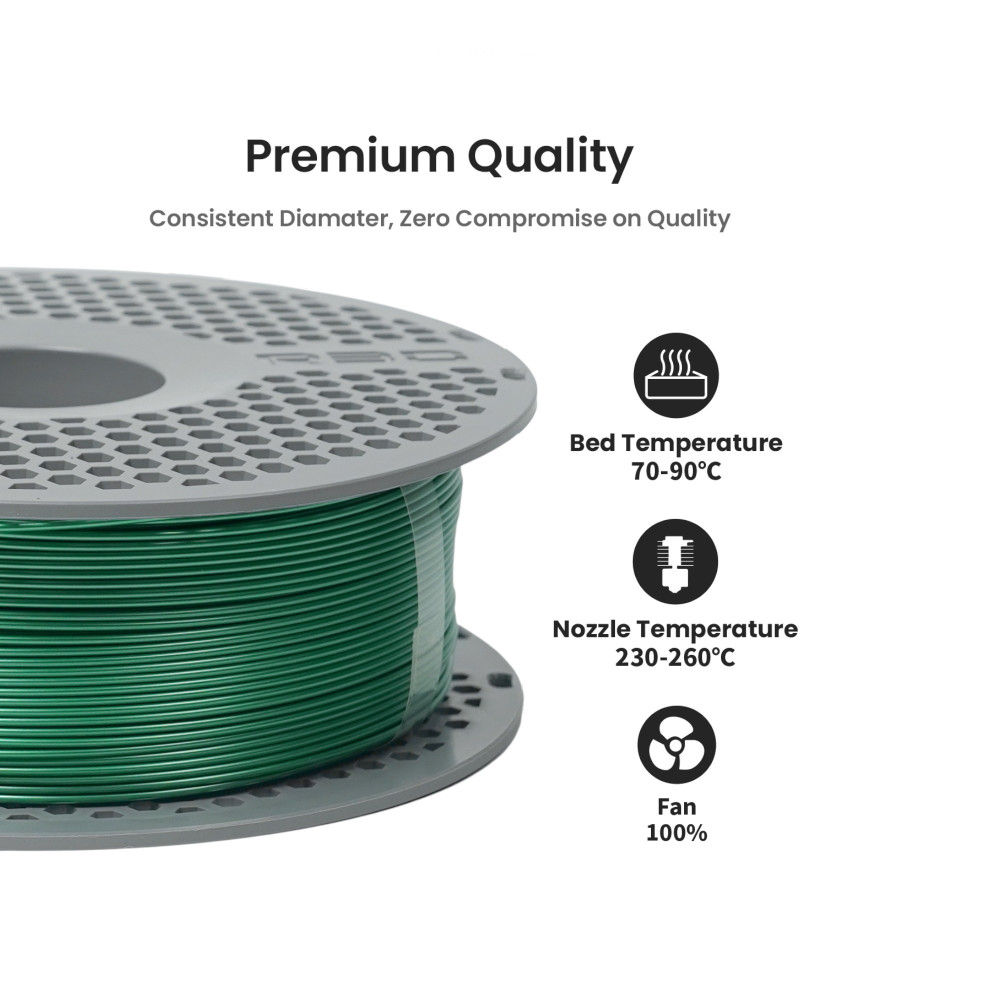

Recommended Printing Parameters:

• Nozzle Temperature: 230–260 °C
• Bed Temperature: 70–90 °C (adhesion aid recommended)
• Printing Speed: <300 mm/s
• Part Cooling: 10–40%
• Build Chamber Temperature: 25–50 °C
• Drying: 60–65 °C, 4–8 h

Application Examples:

• Decorative vases and figures with elegant silk-gloss finish
• Housings and covers with visually appealing surfaces
• Functional prototypes with high-quality surface finish
• Jewelry and display stands with a glossy appearance
• Gift items and personalized objects with silk optics

Documentation:

• Data Sheet
• TigerTag RFID Connect App
• Manufacturer Website

Technical Data:

• Manufacturer: R3D
• Manufacturer SKU: R3DC1R102SMS
• Material: PETG-Silk
• Diameter: 1.75 mm
• Tolerance: ±0.02 mm
• Color: Green
• Net Weight: 1 kg
• Density: 1.28 g/cm³
• Melt Flow Rate (MFR): 4 g/10min (230 °C / 2.16 kg)
• Melting Temperature: 225 °C
• Vicat Softening Temperature: 78 °C
• Heat Deflection Temperature: 70 °C (ISO 75, 0.45 MPa)
• Tensile Strength: 42 MPa
• Elongation at Break: 7.8%
• Flexural Modulus: 2132 MPa
• Flexural Strength: 75 MPa
• Impact Strength: 3.9 kJ/m²
• Layer Adhesion (Impact Strength Z): 2.6 kJ/m²
• Moisture Absorption: 0.4% (23 °C, 50% RH)
• AMS-Compatible: Yes
• Nozzle Compatibility: 0.4–0.8 mm (Copper, Hardened Steel)
• Printing Surfaces: BuildTak, Glass, Blue Tape, PEI
• Packaging Dimensions: 210 × 210 × 70 mm
• Gross Weight: 1420 g

Contents:

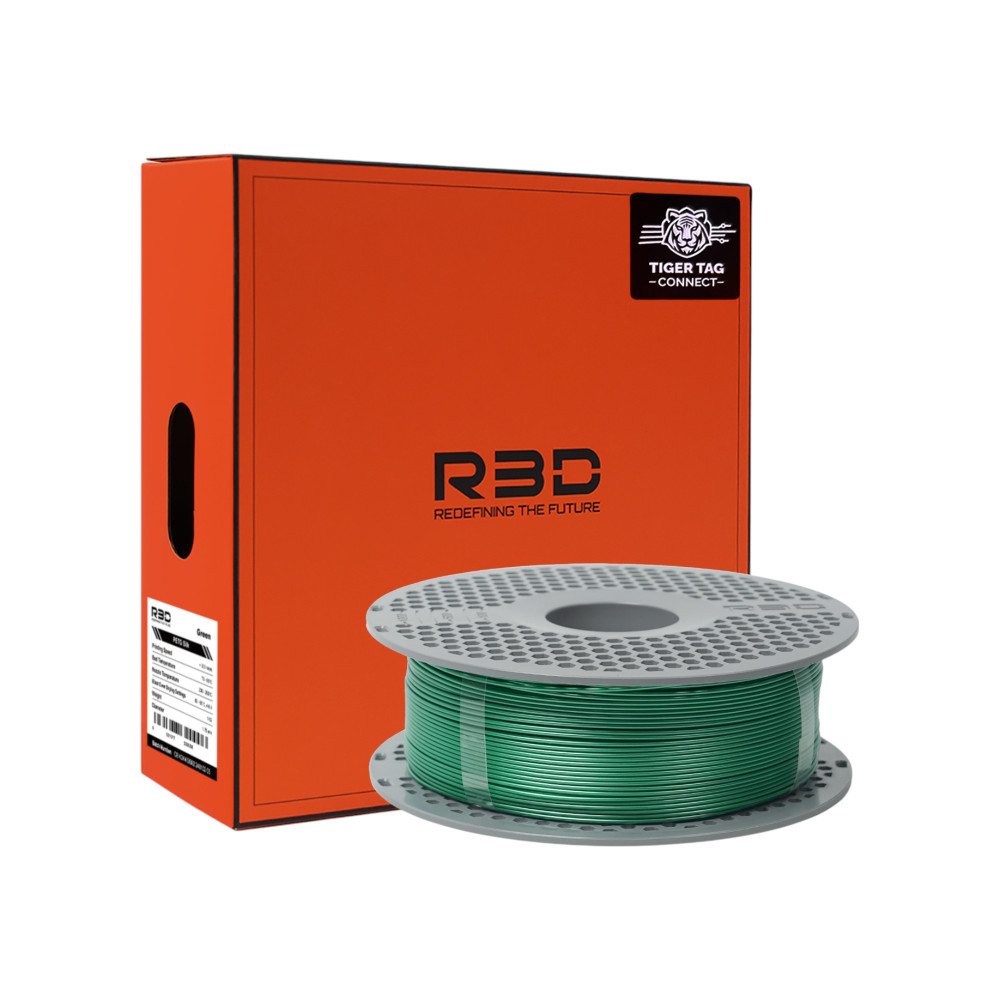

• 1× PETG-Silk Green Filament 1.75mm 1kg R3D
